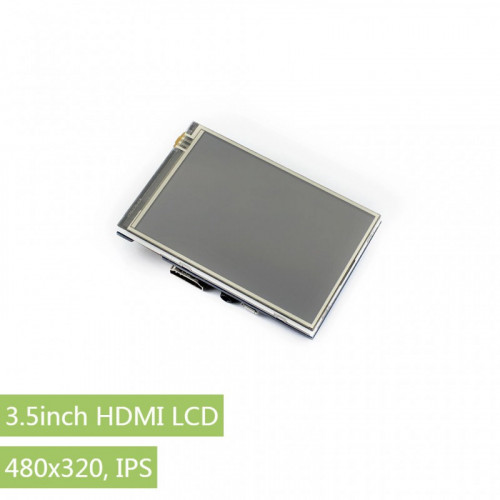

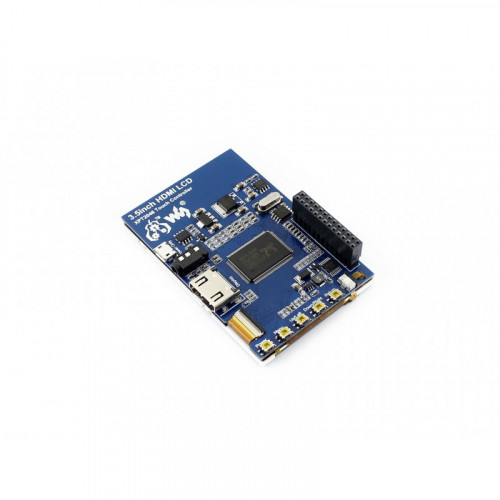

3.5inch HDMI LCD, 480x320, IPS

Product Code: Waveshare 12824

3.5inch HDMI LCD, 480x320, IPS
3.5inch HDMI LCD, 480x320, IPS
3.5inch HDMI LCD, 480x320, IPS

₹3,759.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Features

  • 480x320 hardware resolution, software configurable up to 1920x1080
  • Resistive touch control
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
  • Supports 100-level backlight adjustment
  • Supports HDMI audio output

Note:

  • Limited by the game console OS, the touch function is unavailable.
  • Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

Interface

Pin No. Symbol Description
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
26 TP_CS Touch Panel chip selection, low active

External Dimension

3.5inch-HDMI-LCD-dimension

 PACKAGE CONTENT

  1. 3.5inch HDMI LCD x1
  2. HDMI connector x1
  3. HDMI to micro HDMI connector x1
  4. Touch pen x1
  5. Aluminium heat sink x1
  6. Quick start sheet x1

Development Resources

Wiki : www.waveshare.com/wiki/3.5inch_HDMI_LCD
