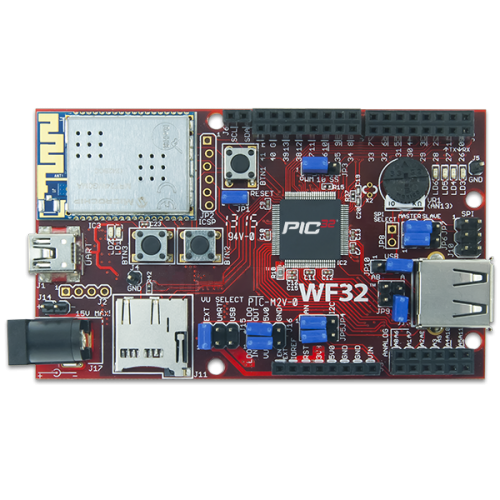

WF32: WiFi Enabled PIC32 Microcontroller Board with Uno R3 Headers

Product Code: DG 410-273

WF32: WiFi Enabled PIC32 Microcontroller Board with Uno R3 Headers
WF32: WiFi Enabled PIC32 Microcontroller Board with Uno R3 Headers
Brand: Digilent

GST inclusive


Availability: Backorder

Add to Wish List

The WF32 is a prototyping platform that adds the performance of the Microchip® PIC32 microcontroller. The WF32 is the first board from Digilent to have a WiFi MRF24 and SD card on the board both with dedicated signals. The WF32 board takes advantage of the powerful PIC32MX695F512L microcontroller, which features a 32-bit MIPS processor core running at 80 MHz, 512K of flash program memory, and 128K of SRAM data memory. The WF32 can be programmed using the Multi-Platform Integrated Development Environment (MPIDE). It contains everything needed to start developing embedded applications. The WF32 features a USB serial port interface for connection to the MPIDE and can be powered via USB or by an external power supply. In addition, the WF32 is fully compatible with the advanced Microchip MPLAB® IDE and works with all MPLAB compatible in-system programmer/debuggers, such as the Microchip PICkit™3 or the chipKIT PGM. The WF32 is easy to use and suitable for both beginners and advanced users experimenting with electronics and embedded control systems.


Processor/IC: Microchip PIC32MX695F512L


  • USB A to mini-B connector
  • microSD connector
  • External power connector
  • USB connector for USB serial converter

Programming: MPIDE, MPLAB IDE, MPLAB compatible in-system programmer/debuggers


  • PIC32MX6xx

  • 512KB Flash
  • 128KB RAM
  • 80 MHz operating speed
  • Four SPI and five I2C connectors
  • 16 channel 10-bit ADC, five compare/PWM outputs
  • 43 available I/O pins
  • 3.3V operating voltage
  • High efficiency, switching 3.3V power supply providing low-power operation
  • 12 analog inputs
  • Connects to a PC using a USB A to mini-B cable (not included)
  • USB 2.0 OTG controller with A and micro-AB connectors
  • MicroSD card connector
  • Four user LEDs, two user pushbuttons, one potentiometer
  • Programmable with MPIDE
  • Also programmable with MPLAB IDE (with the addition of the PICkit 3 in-system programmer/debugger)
  • Microchip MRF24WG0MA WiFi module

What's Included:

  • WF32
  • Custom Digilent cardboard box with protective foam

Support Materials:


Schematics (PDF)

For all other material:

Resource Center
