Product Description :-

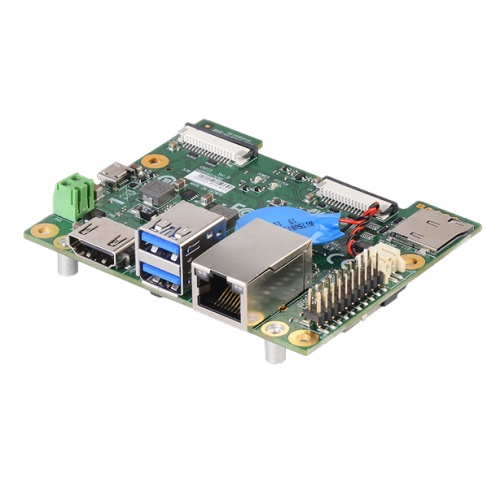

AVerMedia carrier board EN715 is designed for NVIDIA® Jetson Nano™ (Version B01)/ Xavier™ NX module and for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 70°C. It features the very compact dimensions of 70.6mm (L) x 87mm (W) x 27.3mm (H), with four Ø 3.2 mounting holes for the highly reliable field installation.
EN715 can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input, 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins GPIO expansion, 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery. It also comes with a single-mold PCB terminal block module for the easy power connection.
With the compact dimensions, design for reliable field installation, and the rich I/O functions, EN715 is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.
Technical Specifications :-
|NVIDIA GPU SoC Module Compatibility||NVIDIA® Jetson Nano™ (Version B01)/Xavier™ NX module|
|Networking||1x GbE RJ-45|
|Display Output||3840 x 2160 at 60Hz|
Operating temperature 0°C~70°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing
|MIPI Camera Inputs||
• 2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson Nano™ Developer Kit)
• 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
1x USB 2.0 Micro-B for recovery
2x USB 3.0 Type-A
|Storage||1x micro-SD card slot|
|Expansion Header||20 pins: 2x I2C, 1x UART, 9x GPIOs|
|Input Power||3.5mm Screw Terminal; 9V~19V is recommended.|
|Buttons||Power and Recovery|
|RTC Battery||Support RTC battery and Battery Life Monitoring by MCU|
|PCB/Electronics Mechanical Info||
W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”)
|Certifications||CE, FCC, KC|
