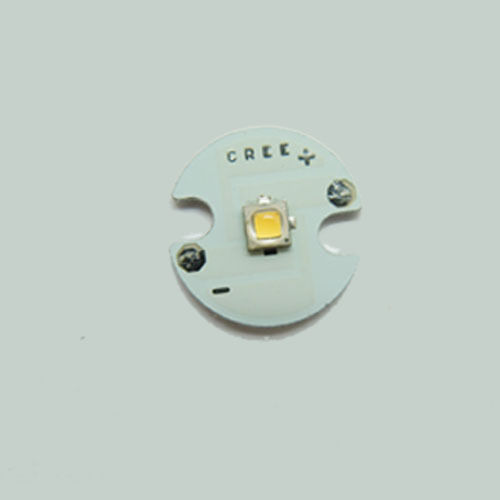

High Power LED 1W with 16mm - White

Highest-performing lighting-class LED. Cree XLamp XT-E White LEDs are the highest-performance white LEDs available. The XT-E LED delivers twice the lumens-per-dollar of previously available LEDs in the popular XP footprint. By leveraging the popular XP footprint, customers can easily incorporate the XT-E LED into existing XP LED designs to shorten design cycle and improve time to market. Built using the latest generation of Cree's silicon carbide based LED chips that deliver higher flux and efficacy, the XLamp XT-E White LEDs set new standards of efficacy, light extraction and quality.

Product Detail

Color temprature:  white 4800K,
Lumen: 463lm,
VF: 2.85V,
IF: 350-1500mA,
Power: 1-5 watt,
Viewing angle: 115degree,
PCB diameter: 16mm, 20mm,

Specifications

• Size (mm x mm) 3.45 x 3.45
• Maximum drive current (A) 1.5
• Maximum power (W) 5
• Light output Up to 456 lm @ 5 W, 85°C
• Typical forward voltage @ 350 mA, 85°C (V) 2.85
• Viewing angle (degrees) 115
• Binning 85°C, ANSI
• Thermal resistance (°C/W) 5
• Reflow-solderable Yes – JEDEC J-STD-020C-compatible
• RoHS and REACH-compliant Yes
• UL-recognized-component Yes - Level 4 Enclosure Consideration

Applications

• Non-Directional
• Directional
• Downlights
• Low- & High-Bay
• Roadway & Parking
• Consumer Portable
• High-End Portable
