2WD Metal Chassis (Small)

Product Code: MGSL 0106

2WD Metal Chassis (Small)
2WD Metal Chassis (Small)
2WD Metal Chassis (Small)
2WD Metal Chassis (Small)

Available Options

* Motor:

GST inclusive


Availability: 1 In Stock

Add to Wish List

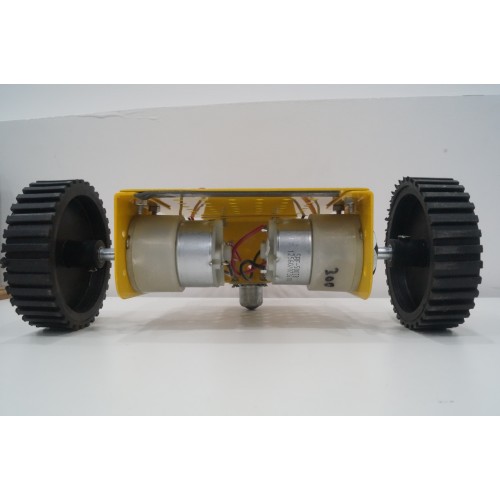

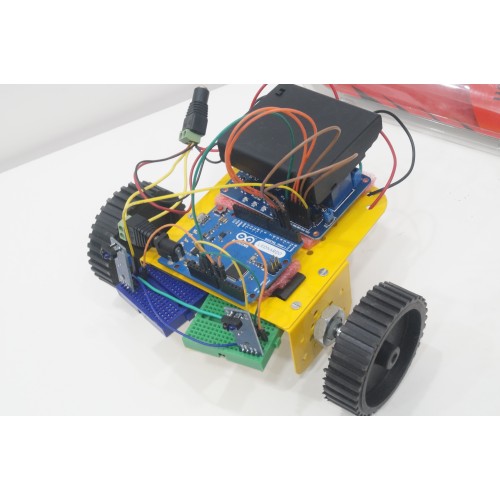

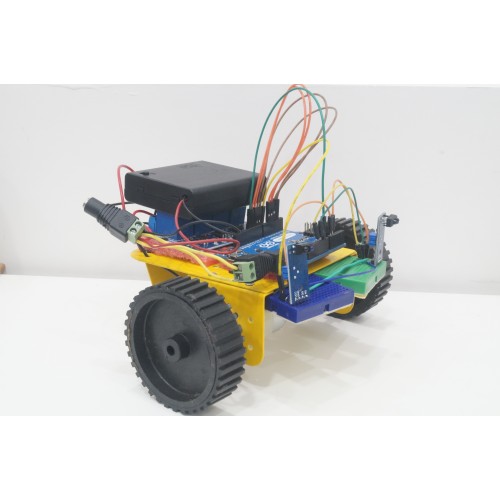

This small chassis comes along with 2 motors and wheels and also a battery pack to power the bot. The ball-bearing is provided since it’s a 2 wheel drive. It Is big enough to embed a small project onto it, while small enough to be within the size limitations of most robotic competitions. It is made up of metal and as a result can handle heavy projects easily.

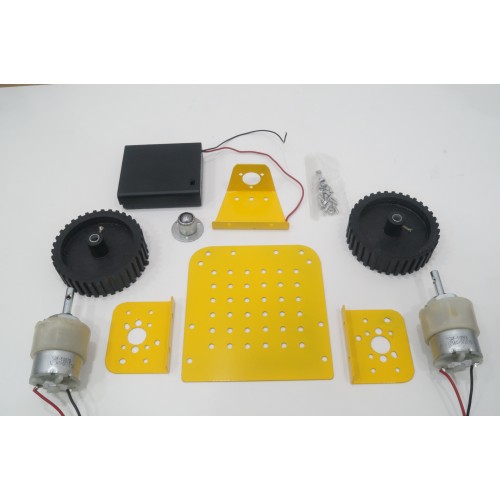

  • Incluces Main Metal Body and Supporting frame
  • Includes 2x 12V @300RPM*** motors (can be easily driven on 5V as well, however  current consumption is to be kept in mind)
  • Includes 2x wheels compatible with the motors
  • Includes a 4 cell AA battery pack (batteries not included)
  • Nuts, bolts, spacers etc. to set up the chassis.
  • An array of holes provided for prototyping​


L = 11.5 cm

W = 10.5 cm

H = 6 cm

R = 3.5 cm
