3WD 100mm Omni Wheel Arduino robotics car

Product Code: Nexus 10006

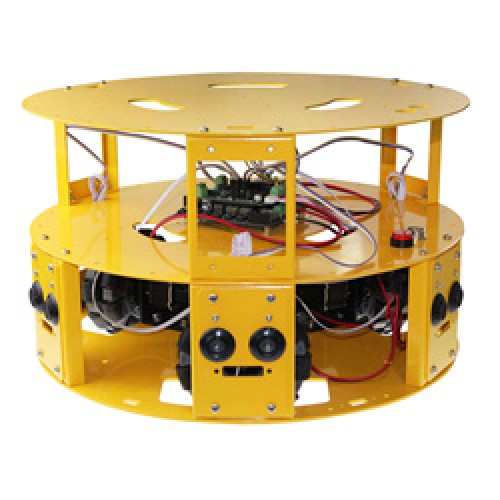

3WD 100mm Omni Wheel Arduino robotics car

GST inclusive


Availability: Backorder

Add to Wish List

3WD 100mm Omni Wheel Arduino robotics car 10006

This is a well designed, Arduino compatible, 3 omni wheel mobile robotics car for research applications. Includes Arduino microcontroller and motor with encoders and is programmable with C, C++. It is compatible with Arduino motor shield, Arduino LCD shield and so on. You only need to change the velocity and direction of each wheel, then it can move in any direction. There are a couple of sensors mounted around it’s body: Ultrasonic sensors and fall detect sensors. There are pre-drilled holes on top to add more electronics or others.


3 Omni wheel drive
Programmable with C, C++
Compatible with Arduino microcontroller and IO expansion board
Capable of rotation
Large top plate for additional equipments like lap top or camera


Appearance: Circle
Color: Yellow
Dimension(mm): 363x363x140
Load Capacity: 15KG
Speeds: 0.6m/s
Power: 17W

What’s in the Box:

Mobile Robot Platform
100mm Plastic Omni wheel X 3
Faulhaber precision 12V DC Motor with encoder X 3
Arduino 328 Controller X1
Arduino IO Expansion X1
Ultrasonic Range Finders X 6
Fall Detect IR Sensor X 3
12V NI-MH Battery X 1
12V Charger X1
USB Cable

Download PDF Files:

3WD 100mm Omni Wheel mobile robot kit 10006

Omni Wheel Brochure

3wd-100mm-omni-wheel-arduino-robotics-car-c006 3wd-100mm-omni-wheel-arduino-robotics-car-c006-1
