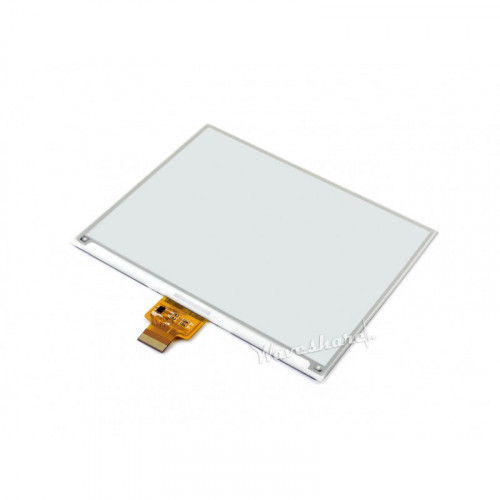

600x448, 5.83inch E-Ink raw display

Product Code: Waveshare 14410

600x448, 5.83inch E-Ink raw display
600x448, 5.83inch E-Ink raw display
600x448, 5.83inch E-Ink raw display

₹4,259.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



This is an E-Ink raw display, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 125.40mm × 99.50mm × 1.18mm
  • Display size: 118.80mm × 88.26mm
  • Dot pitch: 0.198 × 0.197
  • Resolution: 600 × 448
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 3.5s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

PACKAGE CONTENT

Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 5.83inch e-Paper HAT

  1. 5.83inch e-Paper x1

Development Resources

Wiki : www.waveshare.com/wiki/5.83inch_e-Paper_HAT
