Product Code: MGSL 0059


GST inclusive


Availability: 6 In Stock

Add to Wish List

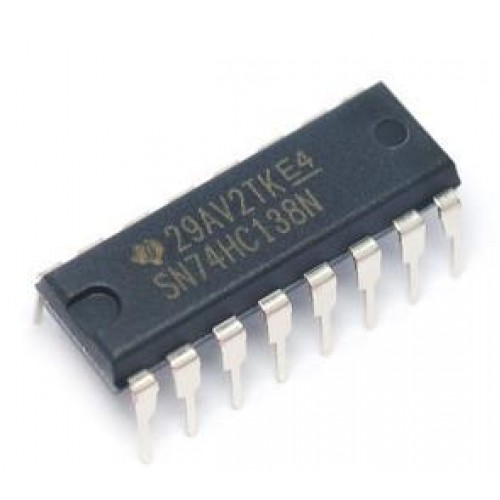

The ’HC138 devices are designed to be used in
high-performance memory-decoding or datarouting applications requiring very short
propagation delay times. In high-performance
memory systems, these decoders can be used to
minimize the effects of system decoding. When
employed with high-speed memories utilizing a
fast enable circuit, the delay times of these
decoders and the enable time of the memory are
usually less than the typical access time of the
memory. This means that the effective system
delay introduced by the decoders is negligible.

  •  Targeted Specifically for High-Speed

            Memory Decoders and Data-Transmission

  •  Wide Operating Voltage Range of 2 V to 6 V
  •  Outputs Can Drive Up To 10 LSTTL Loads
  •  Low Power Consumption, 80-μA Max ICC
  •  Typical tpd = 15 ns
  •  ±4-mA Output Drive at 5 V
  •  Low Input Current of 1 μA Max
  •  Incorporate Three Enable Inputs to Simplify Cascading and/or Data Reception
  • Datasheet:
