Adapter click

Product Code: MIKROE-1432

Adapter click
Adapter click
Adapter click
Adapter click

₹679.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

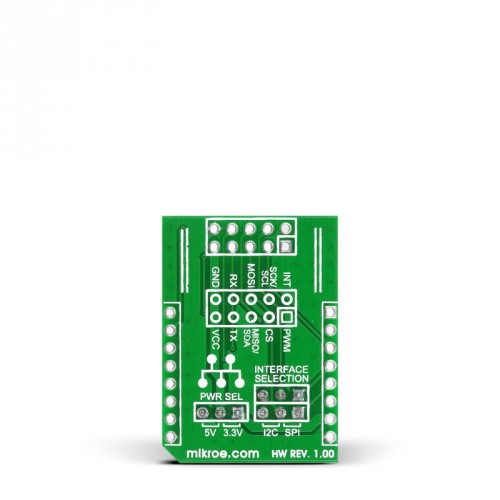

Adapter Click™ is a breakout board which simplifies connection of add-on boards with IDC10 headers to mikroBUS™ socket. There are two ways of establishing connection: using male or female IDC10 connectors. Both are provided with the package. You may solder male IDC10 header on the top side of Adapter Click™ and connect the add-on board directly or via IDC10 flat cable. In some cases, female header socket is a better choice. Solder it either on the top, or the bottom side, depending on which one is more convenient in given circumstances. Each mikroBUS™ line is covered, except AN and RST. There are two jumpers for SPI/I2C selection and one for selection of power supply range.

Specification

Type Adapter
Applications Adapter Click helps you to easily connect IDC10 add-ons to your seventh generation developement boards with mikroBUS sockets
On-board modules male or female IDC10 connectors
Key Features Connect the add-on board directly or via IDC10 flat cable
Key Benefits Simplifies connection of add-on boards with IDC10 headers to mikroBUS socket
Interface SPI,PWM,UART,I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)

Downloads

 Adapter Click User Manual
