Atlas Scientific RTD Temperature OEM Circuit

Product Code: AS RTD-OEM

Atlas Scientific RTD Temperature OEM Circuit
Atlas Scientific RTD Temperature OEM Circuit
Atlas Scientific RTD Temperature OEM Circuit
Atlas Scientific RTD Temperature OEM Circuit
Atlas Scientific RTD Temperature OEM Circuit

₹1,039.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

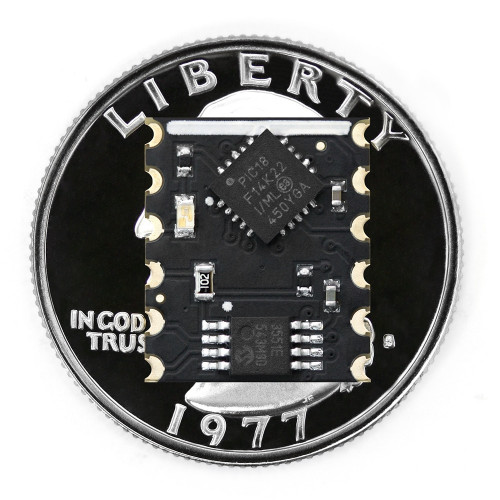

For those engineers tasked with mass-producing a device that needs accurate temperature sensing capabilities, the OEM-RTD is a quick and easy solution to a complex problem. This small 11×13 mm SMD component gives you the ability to accurately read from any class of 2, 3, or 4 wire platinum RTD probes and has a sensing range of -126.000 °C to +1,254 °C.

Specification

RTD Resistance Temperature Detector RTD
Reads Temperature in °C
Range -126.000 °C − 1254 °C
Resolution 0.001
Accuracy +/– (0.1 + 0.0017 x ̊C)
Response time 1 reading every 420ms
Supported probes Any type & brand PT-100 or PT-1000 RTD
Supported configuration 2 wire, 3 wire or 4 wire RTD
Calibration Single point
Data protocol SMBus/I2C
Default I2C address 0x68
Operating voltage 3.3V − 5.5V
Data format ASCII
Electrical Isolation not needed

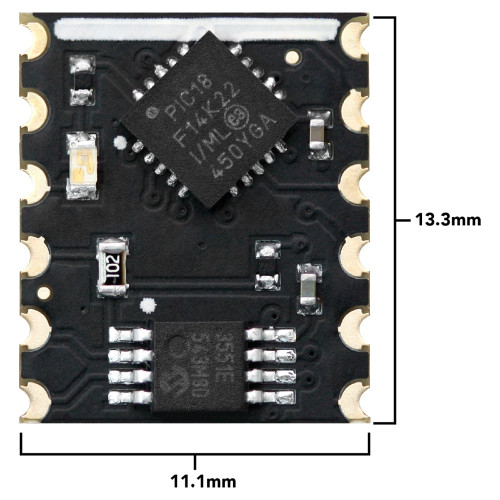

Circuit dimensions 11.1mm x 13.3mm (0.43″ x 0.52″)
Weight 0.56 grams

Related Documents

EZO™ RTD Temperature Circuit RTD Temperature OEM™ Datasheet

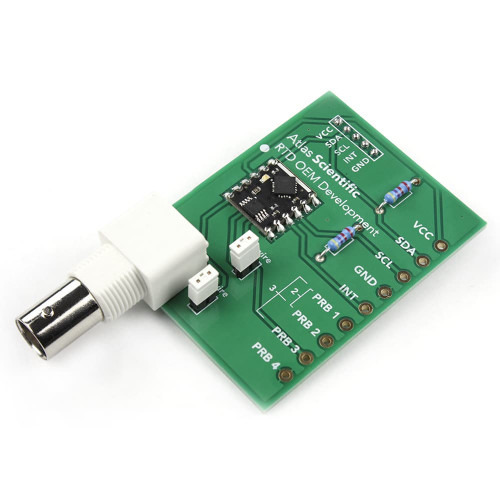

EZO™ pH Circuit OEM Simple Development Board Datasheet

EZO™ pH Circuit RTD OEM™ Arduino Sample Code

EZO™ pH Circuit RTD OEM™ Raspberry Pi Sample Code

EZO™ pH Circuit RTD OEM™ CAD Footprint File (*.dxf)

EZO™ pH Circuit RoHS Certificate

EZO™ pH Circuit CE Certificate
