The Wi-Fi Hydroponics Meter Kit reads pH, Conductivity, and temperature. The pH and Conductivity readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

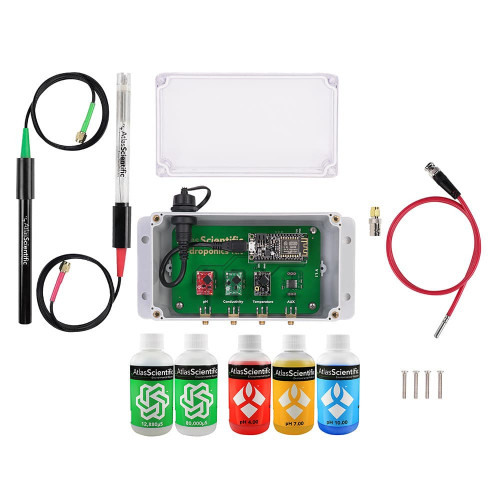

The Wi-Fi Hydroponics Meter Kit comes with:
Specification
• No soldering required |
• No programming necessary |
• Automatically uploads data to ThingSpeak cloud |

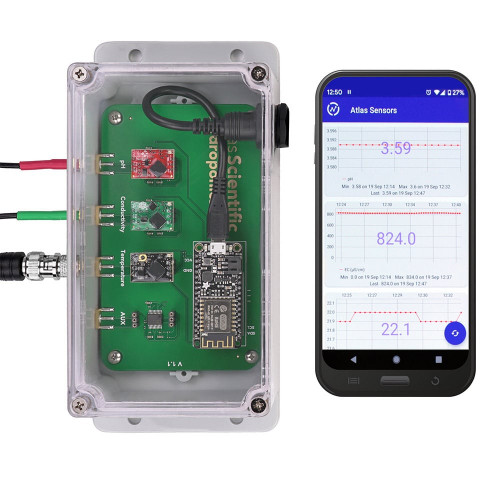

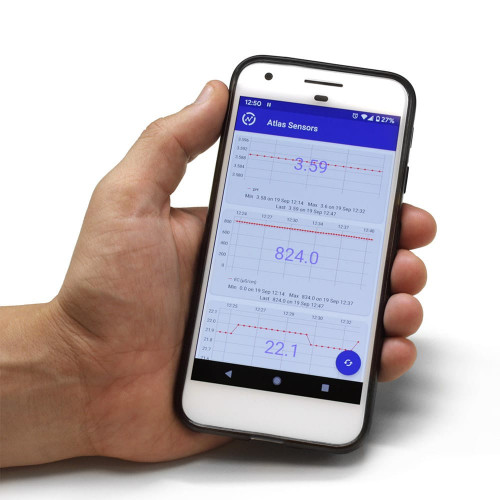

• Access to data on phone, tablet or PC |
• Auto temperature compensation for pH and Conductivity |

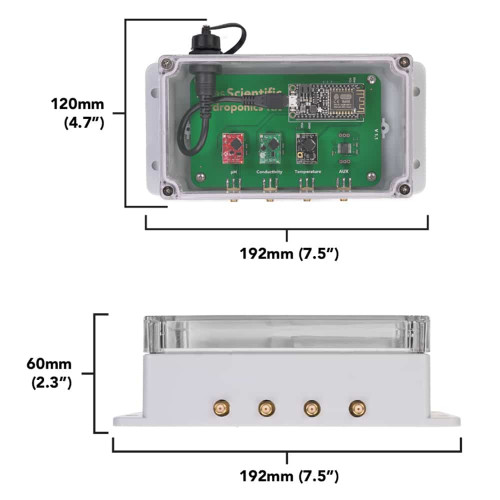

• Pre-drilled / wall mountable case with clear top |
• pH range 0 − 14 / resolution 0.01 |
• Conductivity range 0 − 200K / resolution 1μS |
• Operating voltage : 5V |
• Current consumption : 310mA at 5V |
• Three electrically isolated slots (pH, Conductivity and AUX) |
• One auxiliary (AUX) slot for an additional sensor |
• I2C mode only |
• Calibration solutions included. |
Related Documents
Wi-Fi Hydropnics Meter Kit Setup Guide
Wi-Fi Hydropnics Meter Kit - Thingspeak code
