Atlas Scientific Wi-Fi Pool Kit
Product Code: AS Wi-Fi-PK
The Wi-Fi Pool Kit reads pH, ORP, and temperature. The pH readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

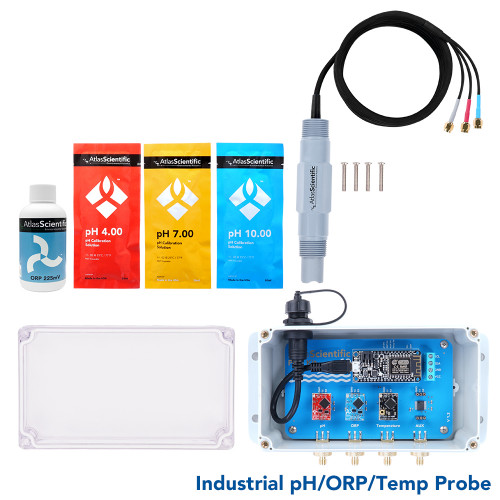

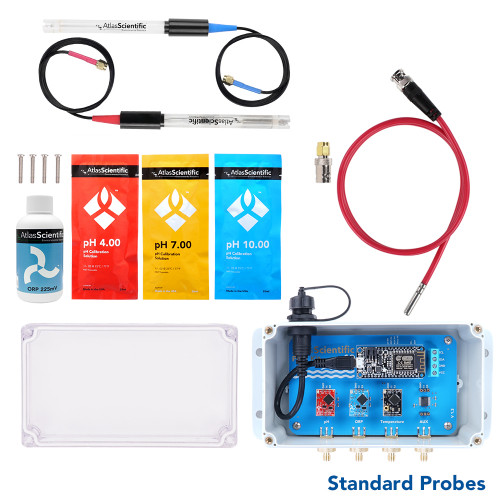

The Wi-Fi Pool Kit comes with:

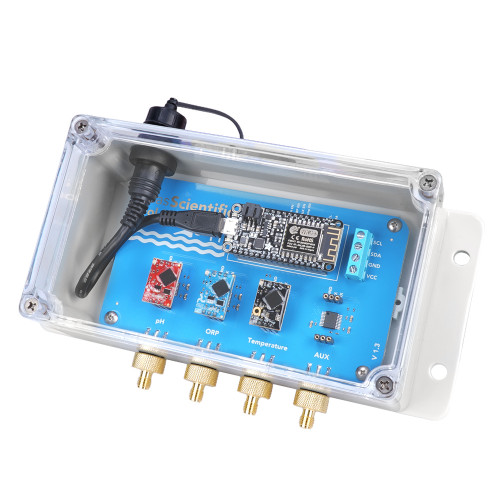

1x Enclosure with hardware assembled within
1x EZO pH circuit
1x EZO ORP circuit
1x EZO RTD Temperature circuit

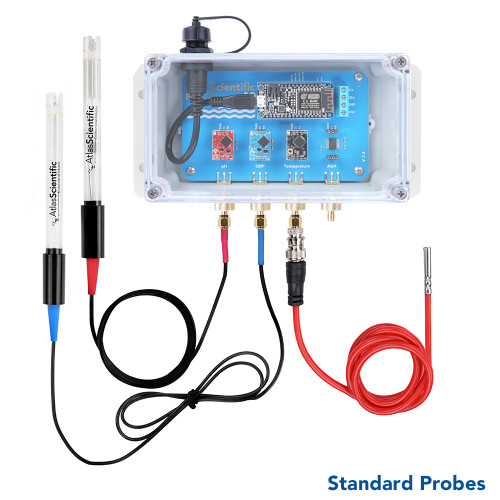

1x Consumer grade pH probe
1x Consumer grade ORP probe
1x PT-1000 temperature probe
OR

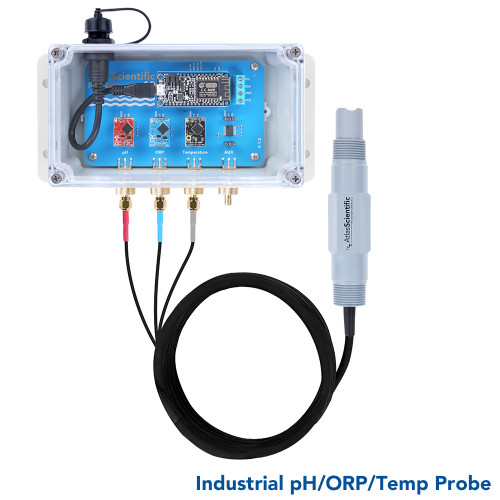

1x Industrial pH/ORP/Temp probe
1x ORP 225mV calibration solution
6x 20ml calibration solution pouches (2x pH 4, 2x pH 7 and 2x pH 10)
Specification
| • No soldering required |
| • No programming necessary |
| • Automatically uploads data to ThingSpeak cloud |
| • Access to data on phone, tablet or PC |
| • Auto temperature compensation for pH |
| • Pre-drilled / wall mountable case with clear top |
| • pH range 0 − 14 / resolution 0.01 |
| • ORP range +/-1100mV |
| • Operating voltage : 5V |
| • Current consumption : 280mA at 5V |
| • Three electrically isolated slots (pH, ORP and AUX) |
| • One auxiliary (AUX) slot for an additional sensor |
| • Calibration solutions included. |
| • I2C mode only |
