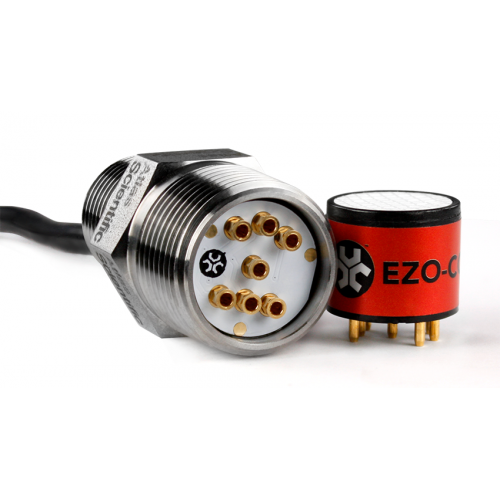

Atlas Scientific EZO-CO2 Embedded NDIR Carbon Dioxide Sensor
Product Code: AS EZO-CO2
With all the talk of Co2 these days, you would think it’s easy to detect.
But Co2 only consists of 0.04% of the atmosphere meaning; it’s a trace gas that’s quite difficult to detect. The Atlas Scientific EZO-CO2 sensor is a compact Non-Dispersive Infrared (NDIR) sensor that gets right to the point, giving you the Co2 readings in ppm. With internal temperature and humidity compensation, the Atlas Scientific EZO-CO2 sensor easily brings advanced sensing to your next project.
The EZO-CO2™ comes with:

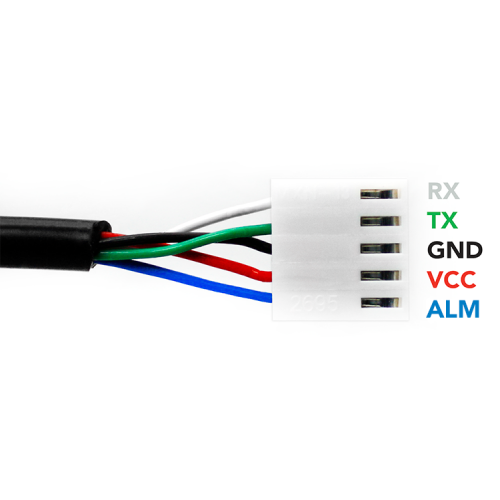

One embedded NDIR carbon dioxide sensor, and one data cable with 5 pin male header.

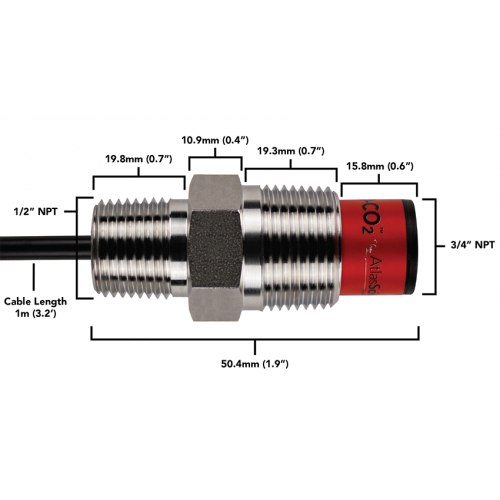

Specification
| Reads | Gaseous CO2 |
| Range | 0 − 10,000 ppm |
| Calibration | Factory calibrated |
| Response time | 1 reading per second |
| Resolution | 1 ppm |
| Accuracy | +/- 3% +/- 30 ppm |
| Connector | 5 lead data cable |
| Warmup time | 10 seconds |
| Cable length | 1 meter |
| Data protocol | UART & I2C |
| Default I2C address | 105 (0x69) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
| Life expectancy | ~5.5 years |
Related Documents
Female connector information
