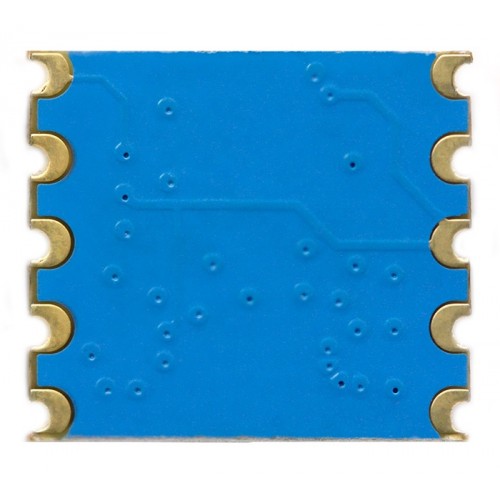

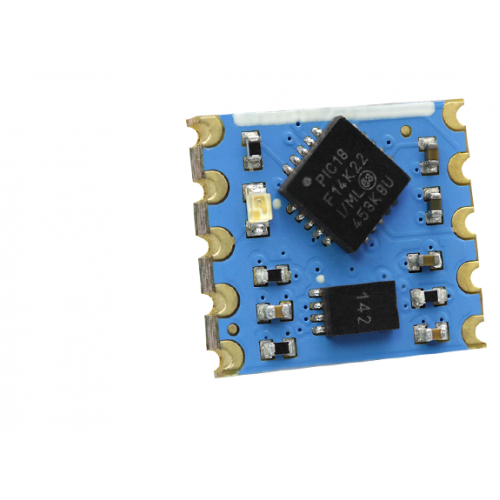

Atlas Scientific ORP OEM Circuit
Product Code: AS ORP-OEM

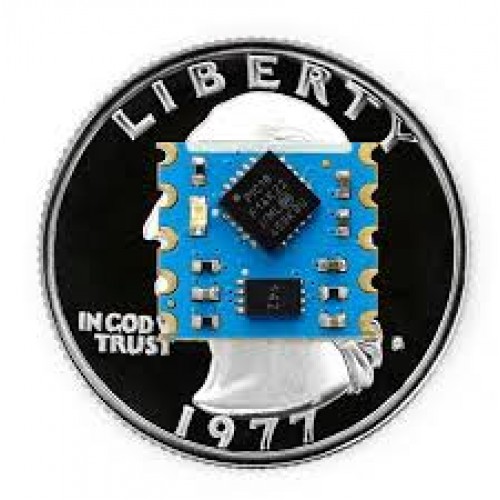

When you are making a device for mass production, you need something small, surface-mountable, and low cost. The Atlas Scientific OEM-ORP Circuit is ready to meet your large-scale production needs. Because the OEM-ORP circuit can be fed into an automatic pick and place, large scale production runs can be done in no time.
Specification
| Reads | ORP |
| Range | -1019.9mV − 1019.9mV |
| Accuracy | +/– 1mV |
| Response Time | 1 reading every 420ms |
| Supported Probes | Any type & brand |
| Calibration | Single point |
| Temp. Compensation | N/A |
| Data Protocol | SMBus/I2C |
| Default I2C Address | 0x66 |
| Operating Voltage | 3.3V − 5V |
| Data Format | ASCII |

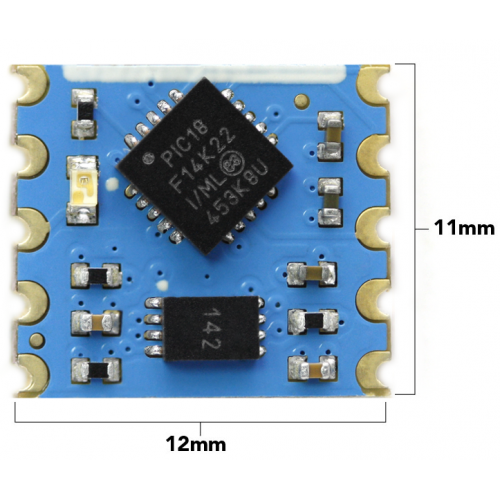

| Circuit Dimensions | 12mm x 11mm (0.47″ x 0.43″) |
| Weight | 0.51 grams |
Related Documents

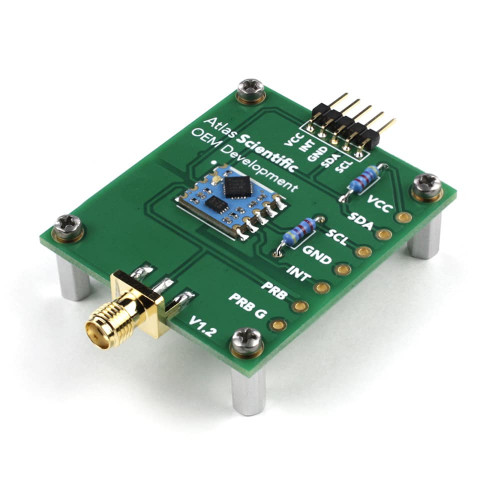

OEM Simple Development Board Datasheet
ORP OEM™ Arduino Sample Code
