Pololu 5V Step-Up Voltage Regulator NCP1402

Product Code: Pololu #798

Pololu 5V Step-Up Voltage Regulator NCP1402

₹499.00
GST inclusive



Qty:

Availability: Discontinued


Add to Wish List



This product has been repalced by the newer version of Pololu #2564

Overview

These tiny boost (step-up) switching regulators are based on the NCP1402 boost regulator IC. Their small dimensions of just 0.33″ × 0.5″ (8.4 mm × 12.7 mm) and a startup voltage of down to 0.8 V make it easy to build 3.3 V and 5 V circuits that are powered by lower battery voltages. The available output current and output voltage ripple depend on the input voltage (see Typical Efficiency and Output Current section below), but the regulator can provide up to 200 mA if the input voltage is high enough.

With low input voltages, the output voltage ripple is under 40 mV peak-to-peak. When the input voltage is close to the output, the output ripple quickly climbs to 150 mV peak-to-peak. Therefore, adding capacitance from the output to ground is recommended for noise-sensitive applications with input voltages close to the output voltage.

Some example applications include:

  • Powering 3.3 V or 5 V systems from lower-voltage batteries.
  • Powering higher-voltage subsystems in lower-voltage systems (e.g. powering a 5 V sensor in a 3.3 V system).

This regulator is available with a fixed 3.3 V or 5 V output.

For higher-power applications, consider using one of our adjustable boost regulators or our U3V12Fx boost regulators. For a regulator that supports similarly low input voltages but higher currents, consider our U1V11x boost regulators, which offer features that the rest of our boost regulators lack, such as a true shutdown and automatic linear down-regulation when the input voltage exceeds the output voltage.

Using the Boost Regulator

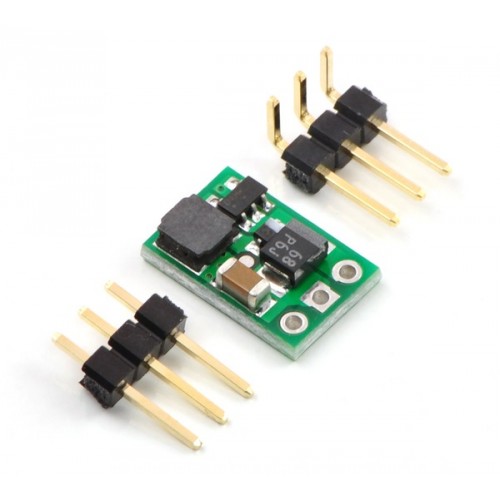

The boost regulator has just three connections: the input voltage, ground, and the output voltage. These three connections are labeled on the back side of the PCB and they are arranged with a 0.1″ spacing along the edge of the board for compatibility with standard solderless breadboards and perfboards and connectors that use a 0.1″ grid. You can solder wires directly to the board or solder in either the 3×1 straight male header strip or the 3×1 right-angle male header strip that are included.

Feature summary

  • Operating voltage: 0.8 V – VOUT
  • 3.3 V or 5.0 V output with 2.5% accuracy
  • <3 mA typical no-load quiescent current
  • Small size: 8.4 mm × 12.7 mm × 3.8 mm (0.33″ × 0.50″ × 0.15″)
  • Weight without header pins: 0.6 g (0.02 oz)

                           Pololu step-up voltage regulator NCP1402 schematic diagram.





Typical Efficiency and Output Current

The efficiency of a voltage regulator, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns. As shown in the graphs below, this switching regulator typically has an efficiency of 75% to 90%.

LC Voltage Spikes

The maximum achievable output current is approximately proportional to the ratio of the input voltage to the output voltage. With a 0.8 V input, approximately 5 mA are available before the output voltage begins dropping. The full 200 mA output can be realized from input voltages over approximately 2.4 V (3.3 V version) or 2.7 V (5 V version). Additionally, the maximum output current can depend on other factors, including the ambient temperature, air flow, and heat sinking.

When connecting voltage to electronic circuits, the initial rush of current can cause damaging voltage spikes that are much higher than the input voltage. In our tests with typical power leads (~30″ test clips), input voltages above 4 V caused voltage spikes in excess of 6 V, the absolute maximum voltage of the NCP1402. You can suppress such spikes by soldering a 33 μF or larger electrolytic capacitor close to the regulator between VIN and GND.

More information about LC spikes can be found in our application note, Understanding Destructive LC Voltage Spikes.

Dimensions

Size: 0.5" x 0.33" x 0.15"1

General specifications

Minimum operating voltage: 0.8 V
Maximum operating voltage: 5 V
Maximum output current: 200 mA2
Output voltage: 5 V
Reverse voltage protection?: N
Maximum quiescent current: 3 mA3

Notes:

1. Without included optional headers.

2. This is a function of the boost voltage: the greater the step-up voltage, the less current the unit can supply.

3. With no load. Actual quiescent current depends on input voltage.
