Atlas Scientific Industrial pH/ORP/Temp Probe
Product Code: AS ENV-50-TPO

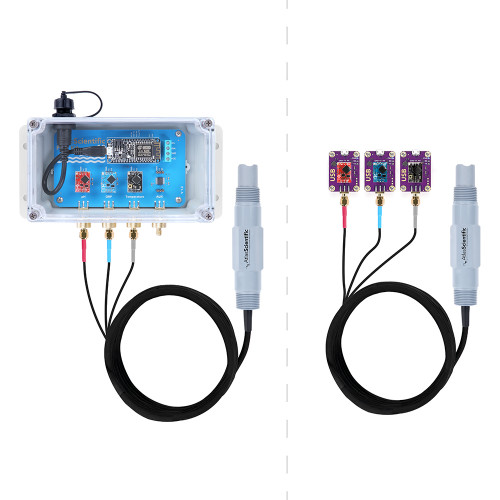

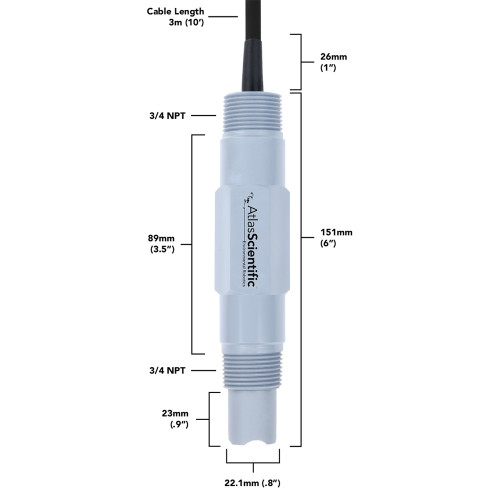

The Atlas Scientific Industrial pH/ORP/Temp probe is built to last. It has all the sensing capabilities of our lab-grade probes in a virtually indestructible housing. This probe features a flat bulb for pH and a gold disk for ORP. The built-in PT-1000 temperature sensor and the 3/4″ NPT threaded body reduces the need for excess parts and makes it easy to install in a pipe, perfect for chemical production or swimming pool monitoring.
Specification
| Reads | pH, ORP and Temperature |
| Range | pH: 0 − 14 ORP: +/- 2000mV Temp: -20 °C to 150 °C |
| Accuracy | pH: +/– 0.002 ORP: +/– 1mV Temp: +/- (0.15 + (0.002*t)) |
| Temperature range °C | 1 − 99 °C |
| Max pressure | 100 PSI |
| Max depth | 60m (197 ft) |

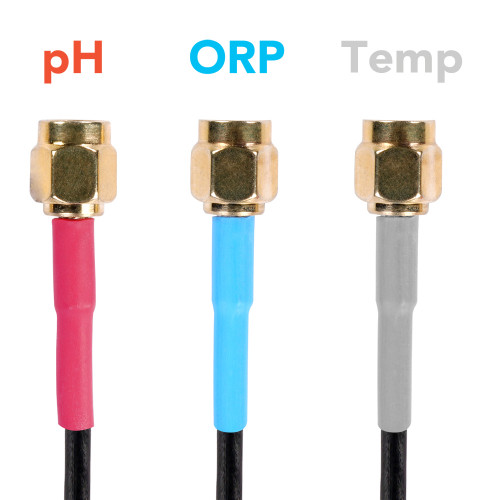

| Connector | Male SMA |
| Cable length | 3 meters (10′) |
| Internal temperature sensor | Yes (PT-1000) |
| Life expectancy | ~4 Years + |
