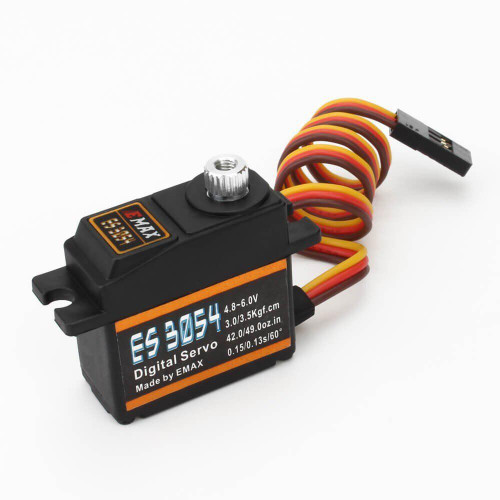

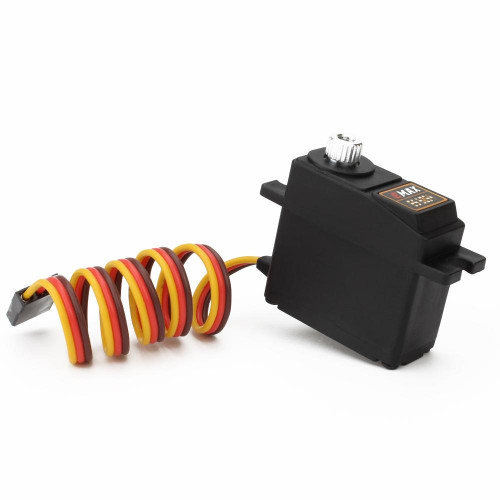

Emax ES3054 30 N-cm 23T Metal Gear Digital Servo ES3154
Product Code: Emax ES3045
Emax ES3054 30 N-cm 23T Metal Gear Digital Servo ES3154 upgrade is lightweight servo motor. This motor has 0.10 sec of response time per 60°.
Features:
Assuring high accuracy and coherence.
Dual-bearing design maintains low backlash and smoothness of the servo for a long time.
2.4 Kgf.cm, 0.12 Sec/60° at no load under 4.8V and2.8 Kgf.cm, 0.10 Sec/60° at no load under 6.0V.
Specifications :-
| Brand |
EMAX |
| Model |
ES3054 |
| Input supply Voltage (V) |
4.8 ~ 6 |
| Degree of rotation |
180 |
| Stall Torque (N-cm) at 4.8V |
30 |
| Operating Speed (No load) at 4.8V |
0.15 sec/60° |
| Stall Torque (N-cm) at 6V |
35 |
| Operating Speed (No load) at 6V |
0.13 sec/60° |
| Plug available |
FUT; JR |
| Connecting Cable Length (cm) |
25 |
| Length (mm) |
38.3 |
| Width (mm) |
13 |
| Height (mm) |
31.3 |
| Weight (gm) |
22 |
| Shipment Weight |
0.025 kg |
| Shipment Dimensions |
3.9 × 2.3 × 4 cm |

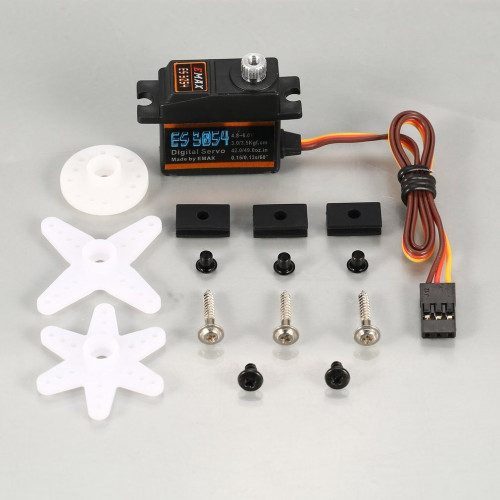

Package Includes:
1 x Emax ES3054 30 N-cm 23T Metal Gear Digital Servo ES3154 upgrade.
1 x Set of accessories.
