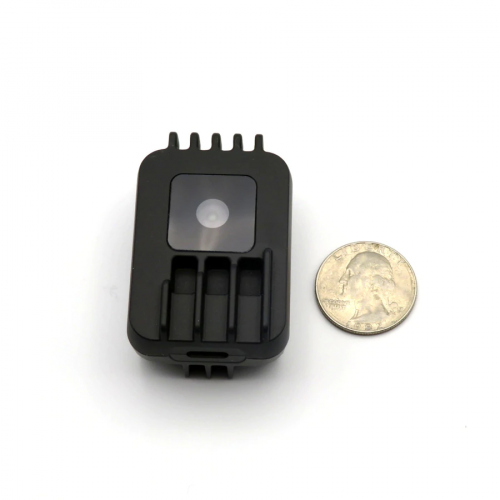

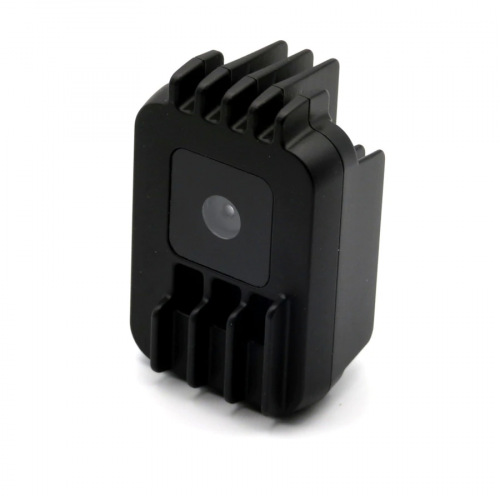

OAK-1 Auto Focus, OpenCV AI Machine Vision Kit, Depth Measuring, Image Recognition

Overview :

The OAK-1 offers a quick and simple way to add USB3 Type-C device power and connectivity, and a single 12MP RGB camera module to the OAK-SoM.Some part of the design cannot be open-sourced because they contain proprietary chip-down vendor information and therefore cannot be shared publicly.
OAK-1 isn’t a standard USB camera. It’s a 4-trillion-operations-per-second AI powerhouse that performs your AI models on-board, so that your host is free to do whatever you need it to do.
Its integrated 12 MegaPixel camera module communicates over an on-board 2.1 Gbps MIPI interface directly to the Robotics Vision Core 2, which ingests this data and performs neural inference on it, returning the results over USB.
Such a data path offloads the host processor from all of this work. In the common use case of object detection from a 12MP image, this means your host is now dealing with a 24 Kbps stream of what the objects are and where they are in the image, instead of a 2.1 Gbps stream of video. So an 87,500 reduction in data your host has to deal with.

Below is an example of running MobileNet-SSD:

• OAK-1 + Raspberry Pi: 50+FPS, 0% RPi CPU Utilization

• NCS2 + Raspberry Pi: 8FPS, 225% CPU Utilization

Camera Specifications:

• Auto-Focus can focus on objects dynamically, which is mainly useful for objects within 50cm of the device

RVC2 inside :

This OAK device is built on top of the RVC2. Main features:

• 4 TOPS of processing power (1.4 TOPS for AI)

• Run any AI model, even custom architectured/built ones - models need to be converted.

• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS

• Computer vision: warp/dewarp, resize, crop via ImageManip node, edge detection, feature tracking.

• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability

• Object tracking: 2D and 3D tracking with ObjectTracker node

Dimensions and Weight :

• Width: 36 mm

• Height: 54.5 mm

• Length: 27.8 mm

• Weight: 53.1 grams

Key features :

• Support OAK-FFC-IMX378 12MP RGB camera module

• Enclosure compatible with standard tripod mount (1/4”-20)

• USB 3.1 Gen1 Type-C data and power

• USB device power LED indicators

• AUX 5V connector

• Access to SoM 1.8V I2C and UART
