RTC2 click
Product Code: MIKROE-948
Description

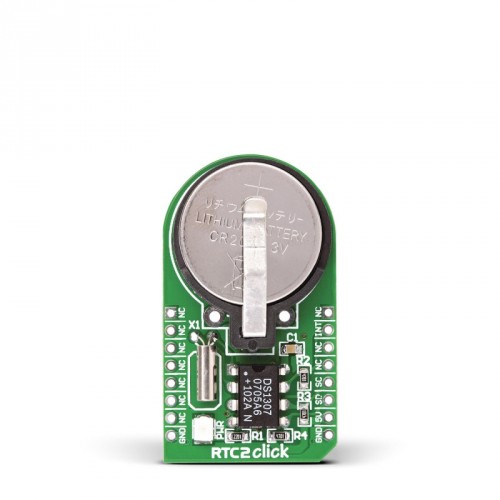

RTC2 Click is an accessory board in mikroBus™ form factor. It features the DS1307 serial real-time clock (RTC). It is a low-power, full binary-coded decimal (BCD) clock/calendar with programmable square-wave output signal. Board uses I2C interface for communication, and can only use 5V power supply. Board features a 3V/230mA lithium battery as a backup power supply which ensures that timekeeping operation continues even when the main power supply goes OFF.
Specification
| Type | RTC |
| Applications | Board is ideal for applications which require real-time clocks, calendars and programmed alarms. |
| On-board modules | DS1307 serial real-time clock (RTC) |
| Key Features | Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the week, and Year with Leap-Year Clock function with four year calendar. |
| Key Benefits | 3V/230mA lithium battery as a backup power supply |
| Interface | I2C,GPIO |
| Input Voltage | 5V,5V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
Downloads
Write a review
Your Name:
Your Review:
Note: HTML is not translated!
Rating:
Bad
Good
Enter the code in the box below:
-
₹1,889.00
