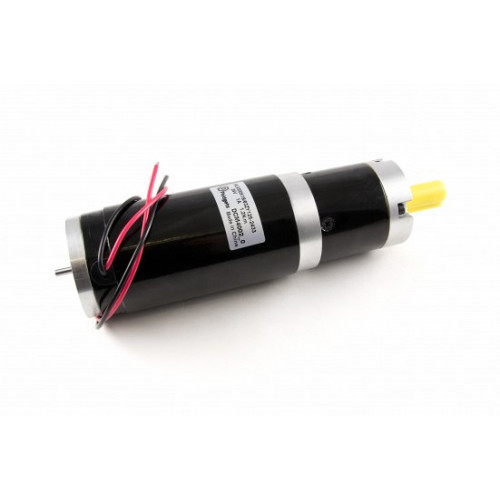

24V/45Kg-cm/182RPM/18:1 DC Gear Motor

Product Code: Phidgets DCM4002_0

24V/45Kg-cm/182RPM/18:1 DC Gear Motor
Brand: Phidgets

₹14,499.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



This DC motor has a rated speed of 182 RPM and a rated torque of 45 kg-cm.
The DCM4002 is a 24 volt motor, generating 45 kg-cm of torque with a top speed of 182 RPM. For more details on the torque and speed characteristics of the motor, see the torque curves document on the Resources tab.

This motor has a high rated current, so we recommend you use the DCC1000. See the Connection & Compatibility tab for more information.

Product Specifications

Motor Properties
Motor Type DC Motor
Output Power (Mechanical) 100 W
Rated Speed 182 RPM
Rated Torque 47 kg·cm
Stall Torque 267.7 kg·cm
Electrical Properties
Rated Voltage 24 V DC
Rated Current 6.5 A
Stall Current 22 A
Physical Properties
Shaft Diameter 12 mm
Wire Length 300 mm
Weight 2.1 kg
Gearbox Specifications
Gearbox Type Planetary
Gear Ratio 18:1
Number of Gear Trains 2
Maximum Strength of Gears 25 N·m
Backlash Error
Customs Information
Canadian HS Export Code 8501.31.00
American HTS Import Code 8501.31.40.00
Country of Origin CN (China)
