4x Relay Phidget

Product Code: Phidgets REL1000_0

4x Relay Phidget
4x Relay Phidget
4x Relay Phidget
4x Relay Phidget
Brand: Phidgets

₹3,459.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

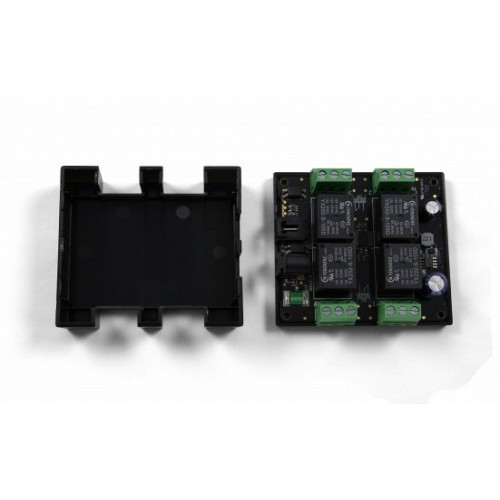

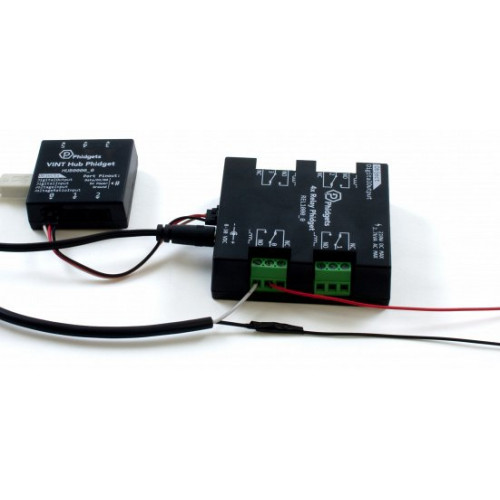

The REL1000 is a mechanical relay that will let you control the power circuits of as many as four separate devices. This Phidget connects to your computer through a VINT Hub.

Features:

  • Control up to four separate devices

  • Rated for 210W of DC power or 1750 VA of AC power

  • DC applications - switch a circuit of up to 30V at 7A.

  • AC applications - switch up to 12A or 277V AC, as long as the total power doesn't exceed 1750 VA

  • Requires external Power supply

Technical Details:

  • Isolation - A voltage spike on the load side of the relay will not damage the control side.

Specifications:

Board Properties

Controlled By

VINT

Relay Properties

Number of Relays

4

Switch Type

SPDT

Load Current Min

100 mA

Turn-off Time Max

5 ms

Turn-on Time Max

8 ms

Contact Resistance Max

50 mΩ

Dielectric Strength

1.5 kV AC

Electromagnet Coil Resistance

70 Ω

Switching Power Max (Real)

210 W

Switching Power Max (Apparent)

1.8 kVA

Electrical Properties

Load Voltage Max (DC)

* 30 V DC

Load Current Max (DC)

7 A

Load Voltage Max (AC)

277 V AC

Load Current Max (AC)

12 A

Current Consumption Min (VINT Port)

500 μA

Power Consumption

40 mW

Supply Voltage Min

8 V DC

Supply Voltage Max

30 V DC

Physical Properties

Recommended Wire Size

12 - 24 AWG

Operating Temperature Min

-40 °C

Operating Temperature Max

70 °C

Customs Information

Canadian HS Export Code

8536.41.00

American HTS Import Code

8536.41.00.50

Country of Origin

CN (China)

*Note: Switching this relay at voltages higher than 30V will result in a reduced product lifespan.

Please Note: This relay cannot be switched at its maximum AC voltage and current at the same time. Ensure that total power of the load does not exceed the switching power for the relay. For example, you can switch this relay at 277V AC and 6.3A (1750VA), or at 145V AC and 12A (1750VA), but not at 277V and 12A (3324VA).

Estimated Relay Lifespan:

The lifespan of the relays on this Phidget vary depending on how much current you're switching and whether it's AC or DC. The following graph illustrates the relationship between load current and relay lifespan:

FUNCTIONAL

The vertical axis is the lifespan of the relay (number of actuations) and the horizontal axis is load current in amps. As you can see, increasing load current from 5A to 10A can reduce relay life by more than half.
