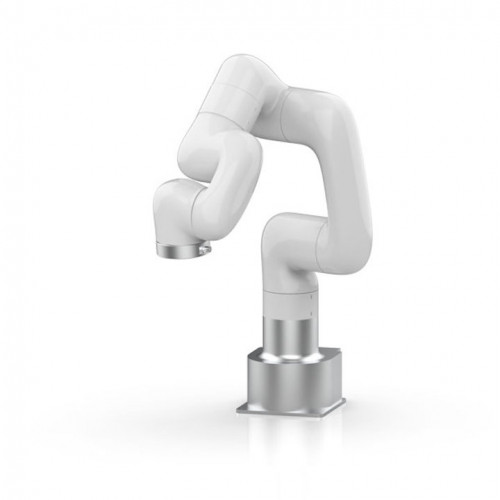

UFactory xArm 6 Lite

Product Code: MGSL Lite 6

UFactory xArm 6 Lite
UFactory xArm 6 Lite
Brand: UFactory

₹414,999.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



BRIEF INTRODUCTION

LITE 6.gif

Durable Collaborative robots accelerating your business

✔ Ultra cost-effective design to achieve your tight budget

✔ Built with the industrial-grade actuators, and born for 24/7 working

✔ Built-in control box for extremely space saving


Flexible deployment
with safe feature

✔ Hand teaching, lightweight, space-saving and easy to re-deploy to multiple applications without changing your production layout.Perfectly for recurrent tasks.

✔ Collision detection are available for all of our cobots. Your safety is always the top priority.

Graphical interface for beginner-friendly programming.gif

Graphical interface for beginner-friendly programming

✔ Compatible with various of operating systems, including macOS and Windows.

✔ Web-based technology compatible with all major browsers.

✔ Drag and drop to create your code in minutes.

Graphical interface for beginner-friendly programming-.png

✔ Fully functional open-source Python/C++ SDK provides more flexible programming.

✔ ROS/ROS2 packages are ready-to-go.

✔ Example codes help you to deploy the robot smoothly.

Powerful and open source SDK at your fingertips

Powerful and open source SDK at your fingertips (2).png

Powerful and open source SDK at your fingertips (1).png

Seamless integration with official accessories

The robotic arm comes with official accessories which seamlessly integrate with our cobots.

✔ Gripper Lite

✔ Vacuum Gripper Lite


Beginner-friendly

Support

Support

​Dedicated online support to figure out the proper way to run the robot.

Realtime Chat

Realtime Chat

Realtime chat support on you laptop or mobile phone.

Plug & Play

Plug & Play

Plug-and-play. Unbox, set-up, calibrate. No technician needed.

Warranty

Warranty

1 year warranty Minimum 3 years of full-time use

SPECS

Working Range

Note: The following working range diagrams are only for safety assessment.





Dimension

tool flange.png

Comparison

Lite 6 xArm 6
Weight  9kg  12.2kg
Control Box  Integrated  Seperated
Reach  440mm  700mm
Payload  1kg  5kg
Repeatability  0.2mm  0.1mm
Speed  500mm/s  1m/s
DoF

Hardware

Lite 6
DoF
Reach  440mm
Payload  1kg
Repeatability  0.2mm
Speed  500mm/s
EOAT  ISO9409-1-50
Motor Type  DC Brushless
Control Box  Build-in
I/O Ports (Base)
I/O Ports (EOAT)
Robot communication  Modbus TCP
Developing Environment  Python/ROS/C++
GUI  UFACTORY Studio
Lite 6
Maximum Speed  90°/s
Joint 1  ±360°
Joint 2  ±150°
Joint 3  -3.5°~300°
Joint 4  ±360°
Joint 5  ±124°
Joint 6  ±360°

Compatibility

Interface

Windows 10, macOS 10.10 or later, Ubuntu 12.04 or later.

API Compatibility

Interfaces with any product that has an API
Our robot API is open-source and users can make adjustments to the software as needed to interface with other products. While all integrations are possible, they all require custom code work i.e. most customers will need to write custom libraries and install software packages that are not shipped with the robot.

Software


UFACTORY Studio is a web-based software running inside the control box, which means no additional installation needed before running the robot. Any computer with a browser has the access after 1 minute hardware connection.

Service & Support

Warranty

1-year warranty against manufacturer defects

Stress tested to last a minimum of 3 years of full-time use

Certificates

Certifications complete (CE)
