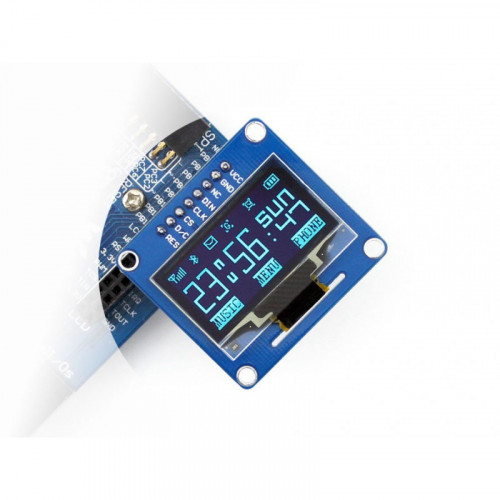

1.3inch OLED (B)

Product Code: Waveshare 10451

1.3inch OLED (B)
1.3inch OLED (B)
1.3inch OLED (B)
1.3inch OLED (B)
1.3inch OLED (B)

₹939.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Key Parameters

Driver Chip SH1106
Interface 3-wire SPI, 4-wire SPI, I2C
Resolution 128*64
Display Size 1.3inch
Colors Blue
Visible Angle >160°
Dimension 40.50mm*37.50mm
Operating Temp. (℃) -30~70
Storage Temp. (℃) -30~80

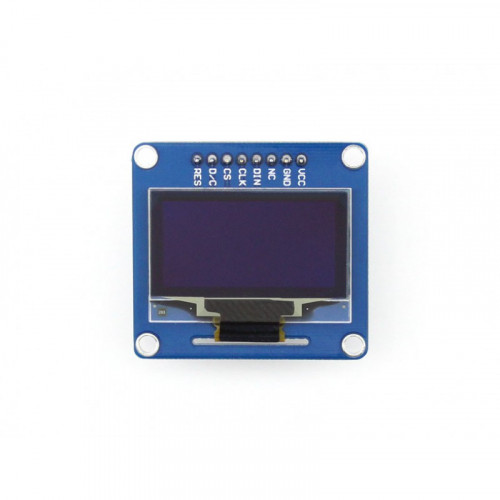

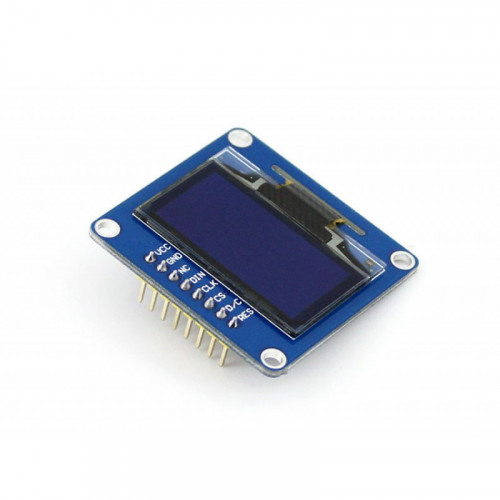

Interface

Pin No. Symbol Description
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

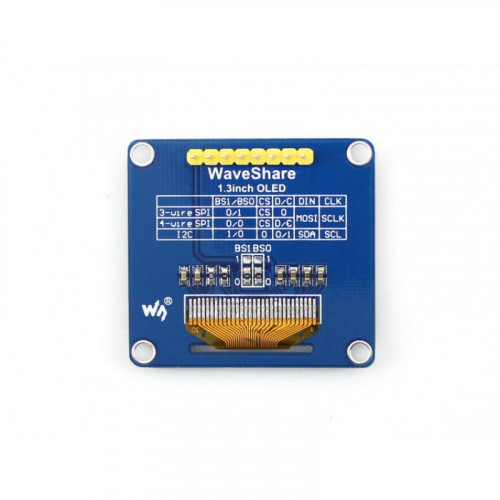

Hardware Config

Mode/Interface BS0/BS1 DIN SCK
3-wire SPI 1/0 MOSI SCLK
4-wire SPI 0/0
I2C 0/1 SDA SCL

PACKAGE CONTENT

  1. 1.3inch OLED (B) x 1

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/1.3inch_OLED_(B)
