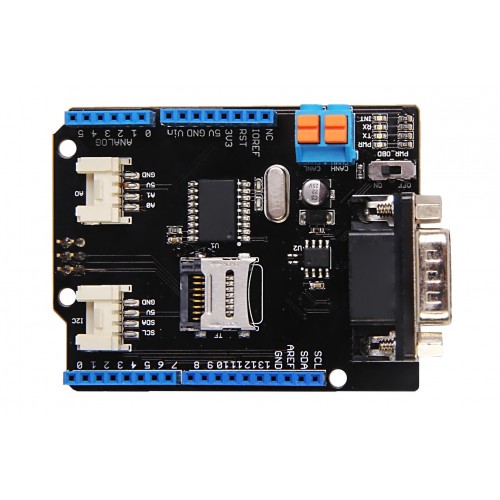

CAN-BUS Shield V2
Product Code: Seeed 103030215

CAN-BUS Shield V2
CAN-BUS Shield V2
CAN-BUS Shield V2
CAN-BUS Shield V2
CAN-BUS Shield V2
Brand: Seeedstudio

₹2,449.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on modern machine tools and as an automotive diagnostic bus. Thanks for CAN-BUS, makers are able to hack their cars more conveniently. In order to make it more convenient to interact with cars, we released the CAN-BUS Shield which adopts MCP2515 CAN-BUS controller with SPI interface and MCP2551 CAN transceiver to give you Arduino/Seeeduino CAN-BUS capability.

Previously we have made two versions of CAN-BUS Shield, the V1.0 and V1.2. They are all awesome shields that widely liked by our users. In order to make it better, several months ago we conducted a survey about CAN-BUS Shield V1.2 and received many valuable advices (Thanks to all the users who replied to us), so we decided to make an update and here it is - CAN-BUS Shield V2.

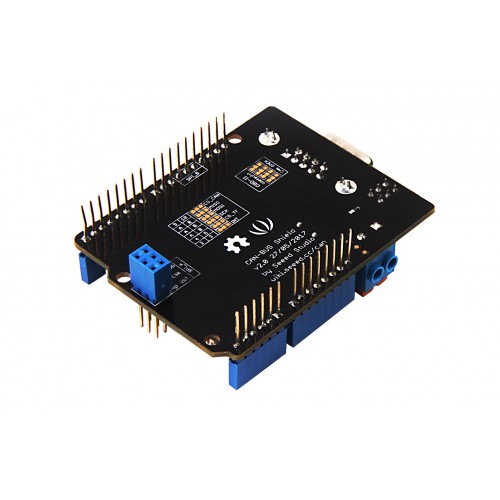

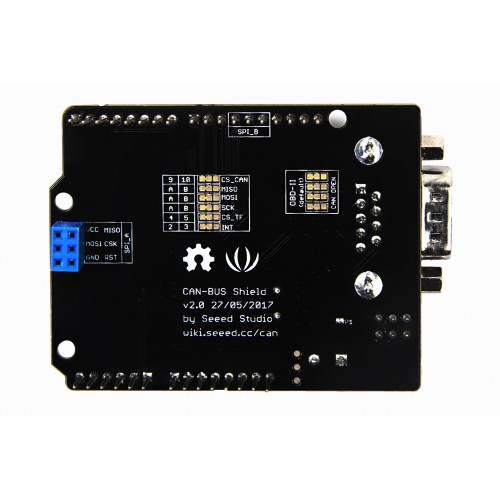

The CAN-BUS Shield V2 still uses MCP2515 as CAN-BUS controller and MCP2551 as CAN transceiver. Despite of that, there are really many updates. First and most importantly, OBD-II or CAN standard pinout can be selected by switching jumpers on DB9 interface, the default pinout is OBD-II. Secondly we add a TF card slot for data storage and the CS pin can be either set to D4 or D5. The INT pin can also be set to D2 or D3 by switching jumpers on the back of the shield. If you want to use more than 2 CAN-BUS Shield, it is needed to cut P1 pad. In V2, we moved the P1 pad from front to the back of the shield to make it easier to cut and solder. All in one, there are more options for customization.

Consider that the D0/D1 pin are usually used for downloading code, we changed the serial Grove connector to pin A0/A1. The I2C grove connector is also changed to more reasonable standard SDA/SCL pin instead of previous A4/A5. The two grove connectors are both changed to horizontal rather than vertical to the shield so that it would be more convenient when connecting to other grove modules.

Alternative Choice:

If your project is space limited, here is a Serial CAN-BUS module which has the full features of CAN Bus. The Serial CAN-BUS provides your Arduino or others MCU with the capability to communication to CAN Bus, such as hacking your vehicle. This Grove CAN-BUS module is controled by UART, that means if your MCU has a UART interface, this serial CAN BUS is available. Good news is that this Serial CAN BUS module needs only $14.9


Features:

  • Implements CAN V2.0B at up to 1 Mb/s

  • Industrial standard 9 pin sub-D connector

  • OBD-II and CAN standard pinout selectable.

  • Changeable chip select pin

  • Changeable CS pin for TF card slot

  • Changeable INT pin

  • Screw terminal that easily to connect CAN_H and CAN_L

  • Arduino Uno pin headers

  • 2 Grove connectors (I2C and UART)

  • SPI Interface up to 10 MHz

  • Standard (11 bit) and extended (29 bit) data and remote frames

  • Two receive buffers with prioritized message storage

Version Tracker:

Features V1.2 V2.0
CAN-BUS Controller MCP2515 MCP2515
CAN Transceiver MCP2551 MCP2551
Default OBD Pinout OBD-II Standard OBD-II Standard
CAN Standard Pinout Not compatible Compatible (jumper)
INT Pin Not changeable D2 or D3 (jumper)
CS pin for TF card slot No TF card slot D4 or D5 (jumper)
P1 pad Front of the shied Back of the shield
Serial Grove D0/D1 A0/A1
I2C Grove A4/A5 SDA/SCL
Grove Orientation Vertical Horizontal

Note:

CAN BUS Shield Work well with Arduino UNO (ATmega328), Arduino Mega (ATmega1280/2560) as well as Arduino Leonardo (ATmega32U4) and LinkIt One, if you want to use it with the others board, please contact us for more details.

  Arduino UNO Arduino Mega Arduino  Leonardo
CAN-Bus Shield V2 Compatible Compatible Compatible



If you want a CAN Bus function for others mcu, please try Serial CAN-BUS module

Documents:

  • For libraries and documents, please visit our Wiki  page.

  • For technical discussion, please come to our Forum.

  • For projects that you would like to share with the community, please visit Recipe.

Technical Details

Dimensions 74.8mm x 53.4mm x 27.1mm
Battery Exclude
