CAN Protocol Learning Kit

Product Code: Tan 0001

CAN Protocol Learning Kit

GST inclusive


Availability: Ships in 5-7 Days

Add to Wish List

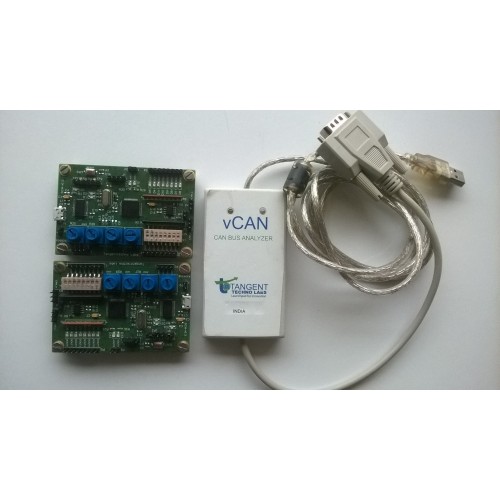

CAN Learning kit is an integrated package that facilitates the user to study CAN protocol and practically create a simple can network and analyse the same. The CAN learning kit comes with complete set of hardware and software utilities that helps user to build a CAN network by configuring the CAN nodes and analyze the traffic flowing over CAN network. . The CAN hardware have on board LEDs which can be used to observe the CAN message contents on digital outputs.

The kit is also provided with software utilities that includes configurable CAN communication hex file, CAN Unimod I/O configuration GUI, Vcan application GUI, STM8 flash loader for loading the hex files through boot loader.

In addition to this a sample code for CAN communication is also given which allows us to go in coding details for CAN. The user can add his/her further coding implementations for using more analog I/O and digital I/O present on board. This allows the user to go in the low-level coding implementations and concepts.

The complete solution is provided along with CAN bus analyzer and a VCAN GUI for observing the CAN network.

This solution is suitable for both system level professionals such as electrical, automotive engineers who quickly need to understand how CAN protocol works and also for embedded system engineers who want to understand CAN protocol and concepts in depth through low level coding.

Automotive grade micro controller intended for CAN communications.
→ Internal EEPROM for storing the configuration settings.
→ Base board with multiple analog,digital I/O and onboard potentiometers & LEDs.
→ vCAN CAN bus analyzer hardware for analysis of the can bus.
→ CAN channel with bit rates up to 1 Mbit/s
→ Compliant to CAN 2.0A (11bit ID’s) and CAN 2.0B (29bit ID’s.
→ LED for indicating configuration mode, running mode and CAN messages simulation.
→ Power Supply Voltage range from 9 to 36 V
→ Operating temperature range from -40 to 85 °C
→ Configurable using free PC based GUI software
→ Free vCAN application software for vCAN CAN bus analyzer.
