CE-VZ02-32MS1-0.5 DC Voltage Sensor 0-200V

Product Code: Phidgets 3509_1

CE-VZ02-32MS1-0.5 DC Voltage Sensor 0-200V
CE-VZ02-32MS1-0.5 DC Voltage Sensor 0-200V
CE-VZ02-32MS1-0.5 DC Voltage Sensor 0-200V
Brand: Phidgets

GST inclusive


Availability: Discontinued

Add to Wish List

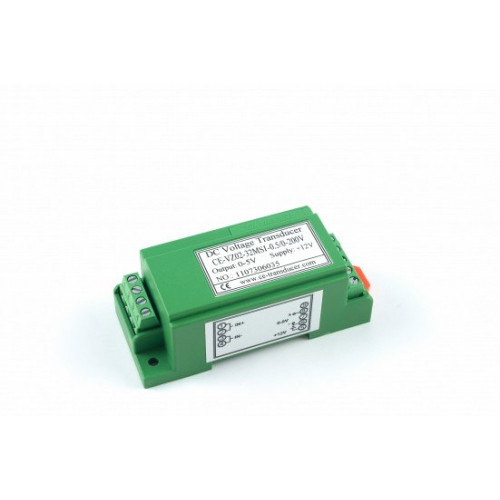

This DC Voltage sensor measures DC voltage up to 200V. Powered by an external 12VDC power supply, the DC Voltage Sensor provides a 0 to 5VDC analog signal that is linearly proportional to the voltage measured at the terminal blocks.

The DC Voltage Sensor can easily be mounted using the screw holes, or on a 35mm wide DIN rail for quick installation. The terminal blocks accommodate conductors of up to AWG #16.

The voltage sensor connects to an analog input on Phidgets I/O boards. The formula to translate the output voltage into measured voltage is:

V = Vout * 40

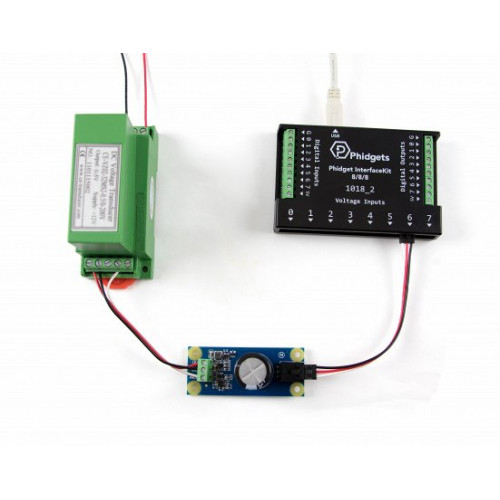

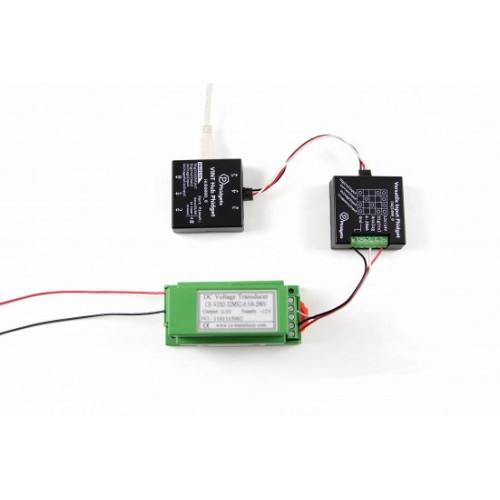

You can use a 12V sensor adapter to connect this sensor to your InterfaceKit or Hub. See the Connection & Compatibility tab for more details.

Product Specifications

Sensor Properties
Sensor Type Voltage (DC)
Sensor Output Type Non-Ratiometric
Input Voltage Min (DC) 0 V DC
Input Voltage Max (DC) 200 V DC
Measurement Error Max 0.5 %
Sensor Response Time Max 400 ms
Electrical Properties
Supply Voltage Min 12 V DC
Supply Voltage Max 12 V DC
Current Consumption Max 4.2 mA
Isolation Voltage (DC) 2.5 kV DC
Output Voltage Min 0 V DC
Output Voltage Max 5 V DC
Physical Properties
Recommended Wire Size 12 - 24 AWG
Operating Temperature Min 0 °C
Operating Temperature Max 50 °C
