Coin Box - 6 Coin Type

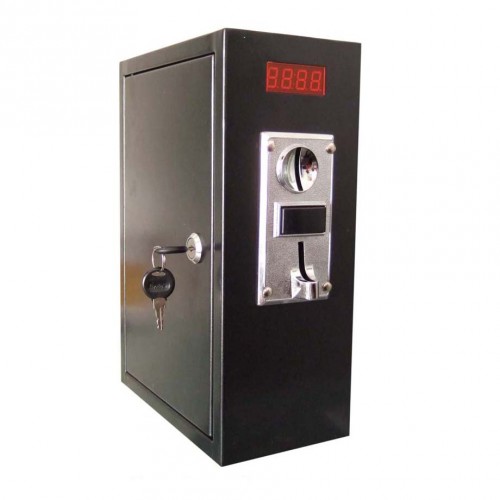

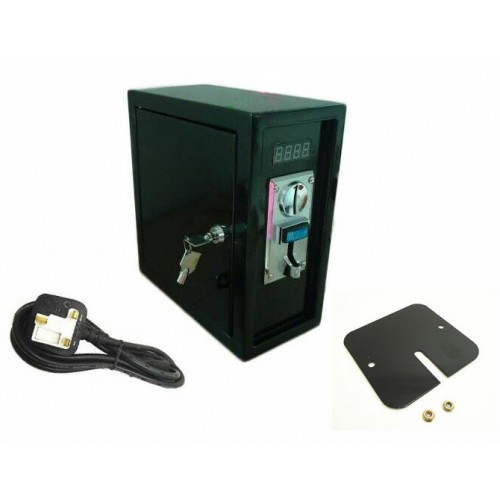

Coin Box Built-in Timer board and Coin Selector (6 type coins) is a coin-operated heavy-duty metal box, with lock and based on a large storage metal container for coins collection, mounted with a multi function timer board to control power supply time and a coin mech can be set with 6 groups of coins in different denomination with different signals.

Multi Function Timer Board is with 4 digital LED display, allows time limit management to precise and security automated controlling timer for coin selector by pass the coin operation.

Multi CPU coin selector is a 6-coins intelligent coin mech, with anti-string protection, anti-false coin, easier anti-jam opearted, with compared against function can be recognized or refused all worldwide coins and tokens, comes with durable plastic or solid metal front plate for optional.

This coin box set is popular used in many automated machines, such as amusement machines, vending machines, retail kiosks system, self checkout machines, transportation parking machines, and automatic fare collection machines, based on the number of coins the user insert.

Multi Coin Mech:

• 6 coins 6 signals
• apply to coin diameter: 17mm~30.5mm
• apply to coin thickness: 1.25mm~3.2mm
• work voltage: DC12VDC (Min: 10VDC, Max: 15VDC), current in 50mA, Max: 450mA
• working temperature: 0℃ to 50℃
• storage temperature: - 30℃ to 55℃
• ambient humidity: up to 95% RH non-condensing
• tilting validator and anti-string
• with coin reject button, flush clean from coin jam
• with self-diagnose
• multi function CPU system identify the coin's material, thickness and diameter
• optional for 5pins serial output and 10pins parallel output
• cover optional: plastic cover and metal cover available

Multi Function Timer Board:

• input voltage: max AC250V, max current: 10A
• output max current: 10A
• AC9V power transformer: supply working voltage to timer board, input voltage: AC9V or DC12V, input current: >600mA
• with 5 pins connector for coin setting
• coin signal: BYTE signal（2400bps , even, 8 data bits, 1 stop bit）or pulse signal
• pulse signal: 25~100ms (keep low electricity level pulse)
• with 2 pins START button
• 4 digital LED display
• time setting: 0~120 minute available, 0~59 seconds
• coin value: 1~200 is available
• allow to set accumulative deposit amount for one timing unit to control power supply time
• allow to set length of timing unit
• when insert new coins, time for control power is accumulative

Coin Box:

• LED displays time
• size: W205 x D95 x H260mm
• coin box capacity about 500 coins (base on EUR1.00)
