LoRaWAN Module 868 with Expansion Board

Product Code: CH-LW-SMA4-868- WEXP

LoRaWAN Module 868 with Expansion Board
Brand: Cooking Hacks

Call Us
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



The LoRaWAN module 868 includes an 868 MHz antenna to be used in this frequency.

Specifications:

  • Protocol: LoRaWAN 1.0, Class A
  • LoRaWAN - ready
  • Frequency: 868 MHz ISM frequency band
  • TX Power: up to +14 dBm
  • Sensitivity: as good as -136 dBm
  • Range: >15 km at suburban and >5 km at urban area. Typically, each base station covers some km. Check the LoRaWAN Network in your area.
  • Chipset consumption: 38.9 mA
  • Radio Bit Rate: from 250 to 5470 bps
  • Receiver: purchase your own base station or use networks from LoRaWAN operators

The Expansion Board allows to connect two radios at the same time. This means a lot of different combinations are now possible using any of the ten radios available for Waspmote: 802.15.4, ZigBee, Bluetooth, RFID, RFID/NFC, WiFi, GSM/GPRS, 3G/GPRS, 868 MHz and 900 MHz.

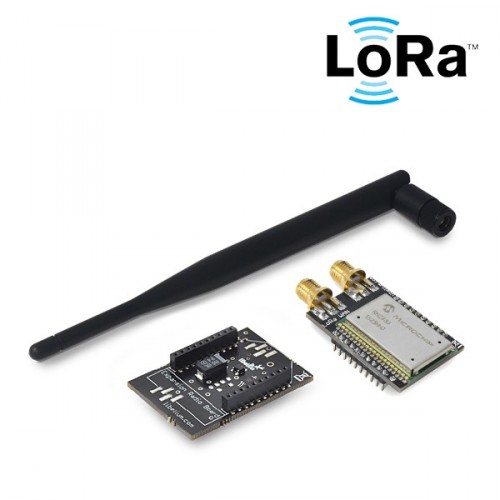

This pack includes a LoRaWAN module 868 MHz, a Waspmote Expansion Board and a 4.5 dBi Antenna.

Documentation:
Waspmote Quick Tutorial
Waspmote Site
Waspmote Technical Guides
Sensor Boards Technical Guides
Networking Guides
Developers Forum
Videos
Articles
50 Applications with Waspmote
