Planetary DC Geared Motor IG32E-05K

Product Code: IG32E-05K

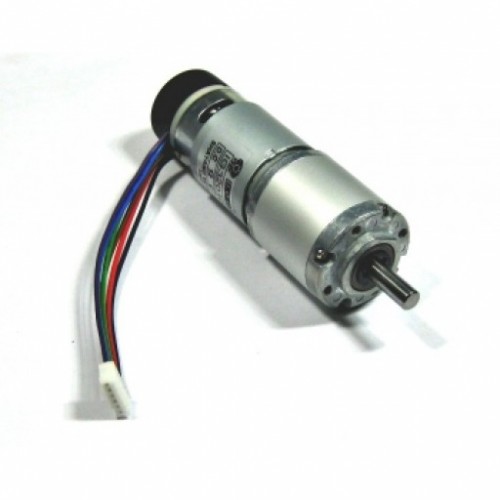

Planetary DC Geared Motor IG32E-05K
Brand: Cytron

₹3,789.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Pleanetary geared motor is always well known with its less backlash and higher efficiency characteristic to meet the higher requiment. This planetary geared motor is manufactured by an establish Taiwanese motor company to ensure the motor's quality and durability.

It also comes with a 7 pulses per rotation,single channel output to provide real time feedback on the rotating position.

Specification:

  • Voltage: 12VDC

  • Rated Torque: ~0.459 kg.cm (45 mN.m)
  • Rated Speed: 1140 RPM
  • Rated Current: 900mA
  • Rated Power: 7W
  • Shaft: 6.0 mm diameter x 16.3 mm length
  • Motor dimension (w x l x h): 32.0 mm x 32.0 mm x 90.5 mm, detailed drawing
  • Compatible motor driver:
    • Arduino-Shield 2Amp
  • Gear ratio: 5:1
  • Encoder Output: 35 pulses per rotation,single channel output​
  • Brushed motor type

Tutorial:

Attachment:
