Rero Standard Set (UK Plug)

Product Code: RR-STD-01-UK

Rero Standard Set (UK Plug)
Rero Standard Set (UK Plug)
Rero Standard Set (UK Plug)
Rero Standard Set (UK Plug)
Rero Standard Set (UK Plug)
Rero Standard Set (UK Plug)
Rero Standard Set (UK Plug)
Brand: Cytron

₹40,399.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

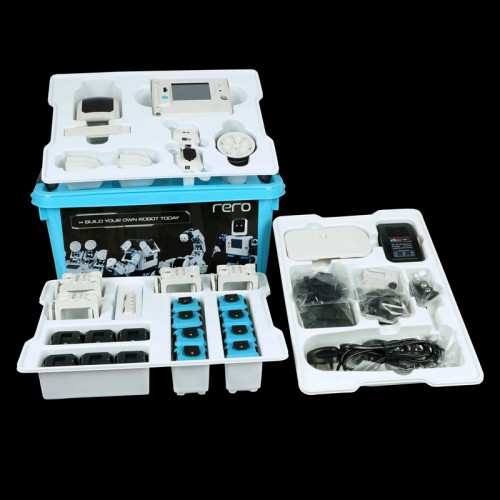

rero stands for Reconfigurable Robot. It is a robot construction kit that features easy to use hardware design and programming tool. It is designed for younger generation or non-technical people to get started with robotic technologies.

Features:

Easy To Reconfigure
Eliminating the tiny screws and nuts is the main task in making reconfigurable robots a reality. rero accomplished this with the straightforward sliding method between its connectors and joints. It doesn't need to fasten a single screw in the entire construction process. This will make the assembling and dismantling of a robot really easy and fast.

Touch Panel Makes Things Different
For the first time ever you see a robot kit which incorporates a 3.2" color touch screen. This makes rero stand out from other robots in the market. Touch screen allows easier access whereby you do not need to press multiple buttons to play a function. In addition, you can even insert your very own screen wallpaper to make your robot more personalized.

Program Your Robot with the Touch of Your Fingertips
rero comes with a ‘Teach Mode’ that can be accessed through the touch panel. You can program a simple movement to your robot without powering up your laptop. This is a very useful and powerful tool especially for those who want to avoid the hassle of computer programming.

rero Animator. A Stepping Stone for Novices
Unlike other robot kits, rero does not require a powerful programming language with hundreds of syntaxes. For beginners, they only need the simplest programming tool to help them to program their robots and at the same time facilitate their logical thinking. The custom designed rero Animator does this job perfectly. And it's FREE for download!
*rero Animator only support Window OS now.

rero is Bluetooth Enabled
You can download rero Remote app to your smart phone (android and iOS) and use it as your remote controller to control rero via Bluetooth. Each button on the app can be customized by assigning a different set of motions to it. Robot fighting can be carried out among your friends with this feature.

Print Your Own rero Parts
To bring robot-making to the next level, we even provide 3D CAD drawing for all rero parts. You can modify the existing rero parts or create a new part that you find is interesting and useful for rero and print it using a 3D printer! We also provide a platform for you to showcase your new design at our website.

Technical Specification:

rero Controller

  • PIC32MX575F512L 32-Bit MCU
  • Support up to 10 Cube Servos per port (come with 6 ports)
  • 3.2" TFT color LCD with touch screen
  • 4GB SD card
  • Bluetooth 4.0 (EDR+BLE)
  • USB 2.0 interface
  • 11.1V Lithium Polymer rechargeable battery (come with charger)

Cube Servo

  • Voltage: 6.5 - 17.8VDC
  • Rated Torque: 12kg.cm (at 12V)
  • Speed: 63RPM (no load at 12V)
  • Gear ratio: 194:1
  • Current:1.5A (max. at 12V)
  • Degree of rotation: 360⁰ continuous
  • 360⁰ endless electrical rotation (1088 steps)
  • Communication: Half Duplex Serial
  • Daisy chain connection

Attachment:

Description Date Added Size Action
rero User Manual 26/01/2018 N/A Download
Quick Start Guide - rero 26/01/2018 N/A Download
Packing List 26/01/2018 157.71KB Download
