DSO Quad - Aluminium Alloy Black

Product Code: Seeed 109990015

DSO Quad - Aluminium Alloy Black
Brand: Seeedstudio

₹21,869.00
GST inclusive



Qty:

Availability: Discontinued


Add to Wish List

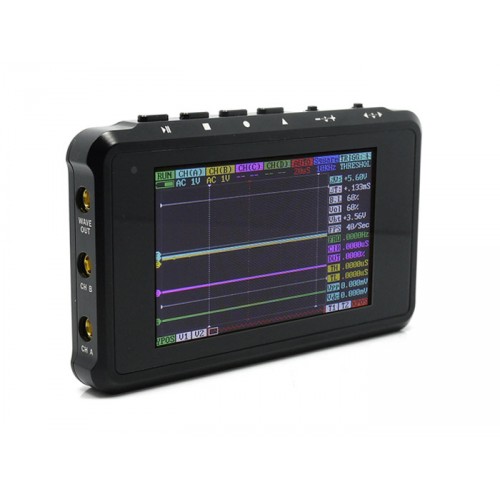

DSO Quad - Aluminum Alloy now is available at Seeed Studio. A new, rigid, elegant aluminum alloy shell makes the Quad even better. This is the coolest tool you should have on your workable!

DSO Quad is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.

Note: Due to the metal conductive shell of DSO Quad, its operating voltage should be controlled under 60V during working in case of any damage to the Quad itself or human.

Features

  • Pocket size and light weight

  • Two 72MS/s analog channels, plus two digital channels

  • Signal Generator

  • Auto Measurement

  • Various Triggering Option

  • Easy waveform storage

  • Firmware upgrade

  • User applications

  • Open source

Technical Details

Dimensions 190mm x 110mm x 50mm
Weight G.W 332g
Battery Lithium Cells / Batteries contained in equipment UN3481 - PI967
Analog channel * 2 [CH_A] [CH_B]
Digital channel * 2 [CH_C] [CH_D]
Vertical Scale 20mV-10V/div (x1 probe)
Vertical solution 8 bit
Input coupling AC/DC
Max input voltage 80Vpp (x1 probe)
Storage 4K per channel
Software trigger type edge, pulse, level (to be added)
Hardware trigger type edge
Trigger source CH1/CH2/EXT
Test Signal generator 10Hz to 1Mhz
Storage internal 2MB USB disk
Auto measure Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Cursor measurement Level, Voltage
Display mode CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Sampling mode real time
Sampling rate 1kSa/s - 72MSa/S
Power Lipo battery
Dimension 98 * 60 * 14.5
Weight 80g (without battery)
Accessories within Pack 2 mueller mcx oscilloscope probe, 2 digital probe

Part List

DSO Quad 1
Battery 1
Mueller mcx oscilloscope probe 2
Digital probe 2
Screwdriver 1
