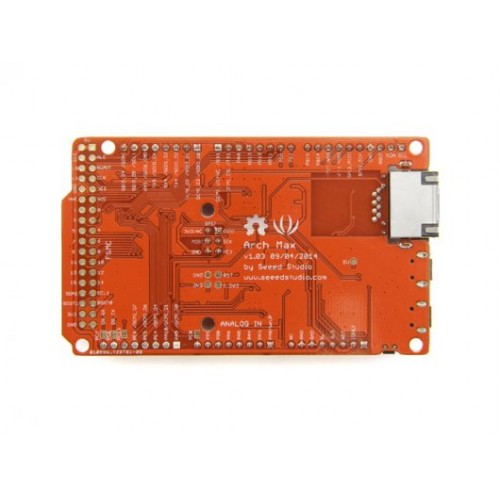

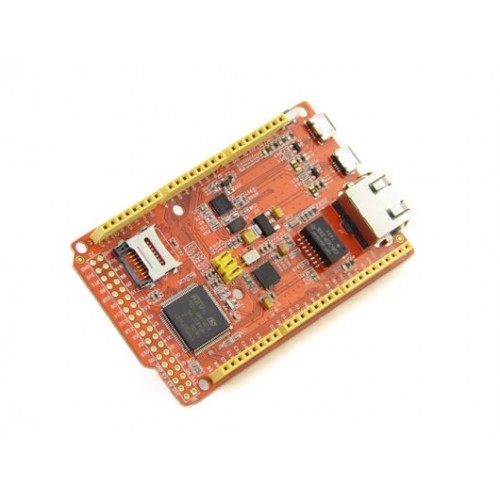

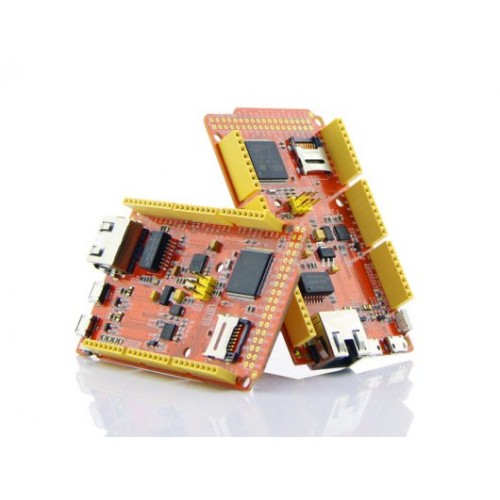

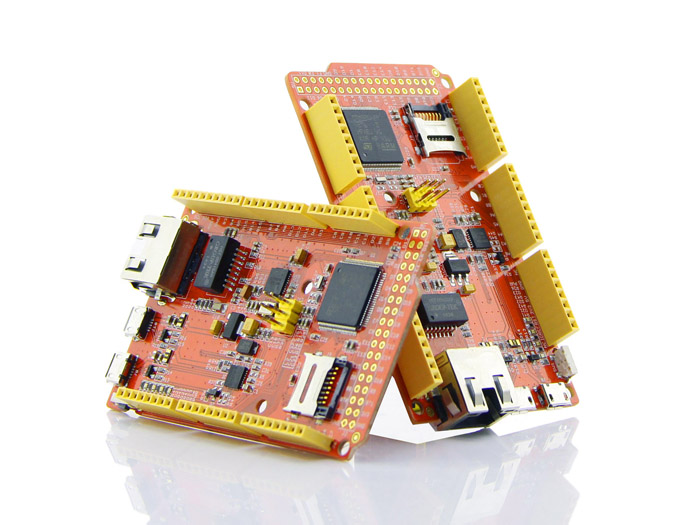

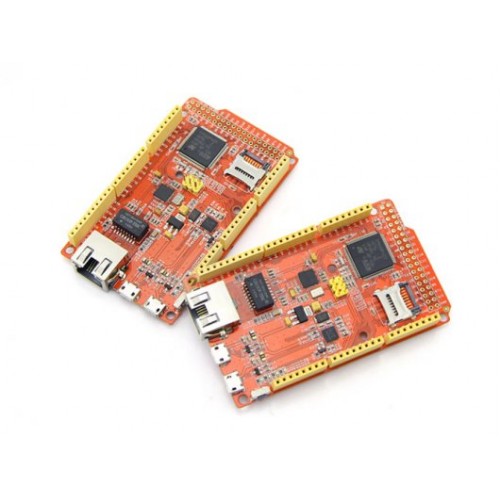

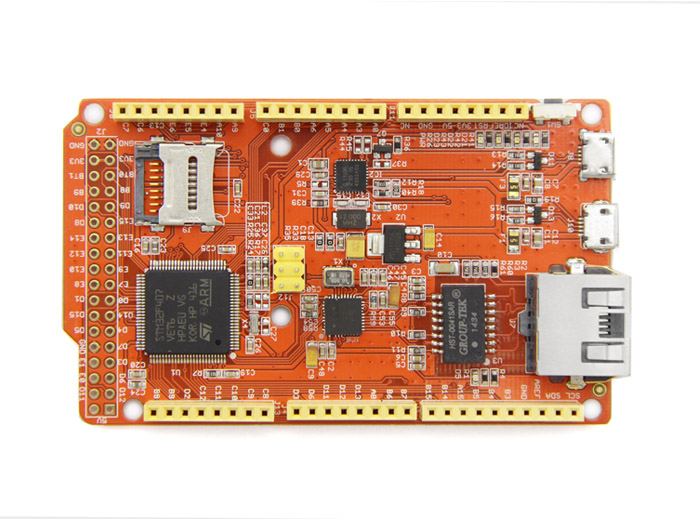

Arch Max - Cortex-M4 based Mbed enable development board

Product Code: Seeed 102080004

Arch Max - Cortex-M4 based Mbed enable development board
Arch Max - Cortex-M4 based Mbed enable development board
Arch Max - Cortex-M4 based Mbed enable development board
Arch Max - Cortex-M4 based Mbed enable development board
Arch Max - Cortex-M4 based Mbed enable development board
Arch Max - Cortex-M4 based Mbed enable development board
Arch Max - Cortex-M4 based Mbed enable development board
Brand: Seeedstudio

₹4,389.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



The Arch Max is an mbed enabled development board for rapid prototyping.

It's based on a STM32F407VGT6 microcontroller with an ARM Cortex-M4F core running at 168MHz. It includes an open link to provide SWD debug, drag-n-drop programming and USB serial communication.

Features:

  • mbed enabled
  • Online development tools
  • Easy to use C/C++ SDK
  • Lots of published libraries and projects
  • High performance STM32F407VGT6
  • ARM Cortex-M4 MCU with FPU at 168MHz
  • 1 MB Flash, 192 KB RAM
  • On-board open link for debug and programming
  • Drag-n-drop programming
  • USB serial communication
  • SWD debug with GDB+ pyOCD/OpenOCD, Keil or IAR
  • Arduino form factor, compatible with lots of shields
  • Build-in Ethernet, USB and SD card slot for connectivity and data exchange

Specification:

                    Item

               Typical

Work Voltage

5V

Microcontroller

STM32F407VET6

Flash Momery

512kB

EEPROM

4kB

RAM

192kB

UART

4

I2C

3

SPI

3

       CAN

          2

                 SDIO

1

Camera interface

1

Eth

1

ADC Channels

8

I/O pins

40

     Digital I/O Max Input Voltage

5.0V

Pin Definition:
