Direct Wired Contact Closure Remote High-Power Relay Controller 2-Channel 1-Way

Product Code: NCD MIRCR2X0_ZRS_KIT

Direct Wired Contact Closure Remote High-Power Relay Controller 2-Channel 1-Way
Direct Wired Contact Closure Remote High-Power Relay Controller 2-Channel 1-Way
Brand: NCD

Call Us
GST inclusive


Availability: Backorder

Add to Wish List

Wired Contact Closure 1-Way Transmitter Receiver Pair

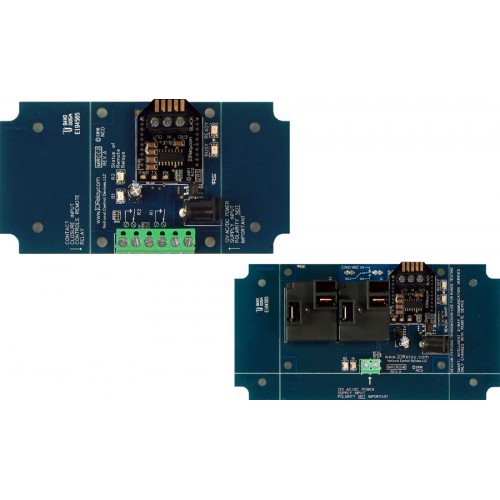

Our MirC 2-Channel High-Power Relay Controllers are manufactured in pairs, designed to work together when powered up using 3-wire communications. The contact closure inputs on the transmitter control the relays on the receiving relay controller.  Both the transmitter and receiving relay control display the relay status using LEDs.  MirC controllers communicate to each other using just 3 wires over distances up to 1,000 feet.  Use just about any type of network wire, including Cat3, Cat5, Cat6, or whatever else you may have for best communication distance.  MirC controllers use screw terminals to connect 3 communication wires between controllers.

This pair of MirC controllers is equipped with your choice of 20-Amp SPDT or 30-Amp SPST relays, ideal for use in most high-power switching applications.  Ideal for lights, motors, gate openers, pump controllers, valve controllers, and much more.  On-board Relay status LEDs and busy/ready LEDs let you know when these controllers are talking to each other.  When communications is lost, on-board relays will automatically deactivate within 30 seconds (user selectable option).

Wireless MirC Remote Contact Closure Transmitter and Receiver Controllers

No Computers, No Configuration – Works Right Out of the Box.  MirC controllers stay connected to each other using wireless communications.  Inputs on the transmitter activate relays at the receiver.

Permanently Married, MirC is Always Trying to Talk to it’s Mate!

MirC controllers are always talking to each other.  They stay in relentless communications for optimal reliability.  Should they lose communication with each other, they will keep calling out for each other until they find their mate.  Since MirC controllers are married to each other, it’s possible to have several MirC pairs in the same area without any significant interference.

Syncing Up

MirC controllers are equipped with contact closure inputs on the transmitter and relay outputs on the receiver. The inputs on the transmitter activate the relays on the remote receiver using 3 wires for communications between controllers.  The transmitter displays the status of the remote relays using LEDs (one LED per relay), so both the transmitter and receiver include relay status!  Every MirC controller is equipped with a Busy/Ready LED. If the Busy LED flashes, this indicates the remote device has successfully received and accepted your contact closure status. If the Busy LED does not flash, the remote device is out of range.

Beacon Mode

Beacon Mode communicates with a Remote MirC controller many times per second, refreshing Relay Status information every time a valid data stream is received by the remote device. Relays are only refreshed when a valid data packet is received. If data is lost, the Ready LED will stay on and Relays will stay in their current state. If the remote MirC controller is in range, the Busy LED will flash periodically, indicating valid communications between devices. Beacon Mode is slower than Smart Mode and is used primarily for initial testing of two devices.

Smart Mode

Once you have determined an installation location for both MirC controllers, move the Beacon/Smart jumper to the Smart position. Smart Mode communicates to the remote device any time a change is detected on the local device. Otherwise, the controller periodically checks to make sure the remote device is in range. Smart Mode is significantly faster than Beacon Mode. Smart Mode is the preferred mode for daily use in most applications. Note that each MirC controller can be set to a different mode and jumper changes take effect immediately. Again, the Busy LED will indicate the remote device is properly communicating. Smart Mode will also verify the relays on the remote device are properly set. If they are not, Smart Mode will attempt communications until the remote device responds. If communications is lost between the MirC controllers, all relays will automatically shut off within 30 seconds. If this is not desirable, Beacon Mode should be used.

Beacon Mode vs. Smart Mode

Perhaps the most notable difference between Beacon and Smart Mode is how relays respond if communication is lost. In Beacon Mode, the relays will stay in their current state and will not change unless a new data packet is received. In Smart Mode, relays will turn off automatically in 10 to 30 seconds if communications is lost between MirC controllers.

Wired Range

The distance between MirC controllers will affect reliable operation. With the direct wired version of MirC, you should expect to get a range of 1,000 feet using a 3-wire cable.  The cable can be any common network cable such as Cat3, 4, 5, or 6, or standard telephone or similar cable.  The wires attach to a 3-wire terminal block directly to the MirC controllers.


MirC controllers are typically used by our large industrial clients for a wide range of remote control switching applications.  Typical installations include remote gate operation, remote light control, remote pump control, as well as various temperature override applications.  Since MirC includes relay status LEDs on each side, validating operation is much easier than using other remote control solutions.


NCD manufactures several variations of MirC as well as other Mirror series devices.  Here are some variations you may wish to consider:

  • MirC Wireless for remote control applications, available with optional wireless encryption
  • MirC Wired for hard-wired communication applications
  • MirC Network for local area Ethernet communications or use over the internet (internet communications uses our server)

Our Mirror Family Controllers:

  • MirX consists of relays and contact closure inputs on each controller.  Inputs in the home location control the relays in the remote location.  Inputs in the remote location control the relays in the home location.
  • MirC is the same as MirX except MirC consists of contact closures on one controller and relays on the remote controller.
  • MirM consists of a single contact closure input board and several remote relay controllers.
  • MirW consists of a single several contact closure input boards and a single relay controller.

MirC Relay Options

MirC offers several relay options, depending on your application.  We stock solid-state, high-power, and general purpose relays in our MirC line of products.  However, we can customize our MirC controllers to your exact needs.  Please contact us if you need any custom designed MirC controllers, including different relay types or firmware modifications.  This particular controller has the following relay options available:

20-Amp SPDT Relay Option

This controller is available with a 20-Amp relay option, allowing control of high-power loads up to an absolute maximum of 240VAC at 20 Amps. Ideal for high-power switching applications, this relay should never be used for low-power signals. The 20-Amp relay is of the SPDT variety, which provides Common (C), Normally Open (NO), and Normally Closed (NC) connections. Common is connected to NC when the relay is off. Common disconnects from NC and connects to NO when the relay is activated. This relay uses .250″ Quick Connect terminals (optional accessory) to connect to the top side of the relay. The relay is molded with COM, NC, and NO markings into the plastic.

30-Amp SPST Relay Option

This controller is available with a 30-Amp relay option, allowing control of high-power loads up to an absolute maximum of 240VAC at 30 Amps.  Ideal for high-power switching applications, this relay should never be used for low-power signals.  The 30-Amp relay is of the SPST variety, which provides Common (C) and Normally Open (NO) connections.  Common has no connection when the relay is off.  Common connects to NO when the relay is activated.  This relay uses .250″ Quick Connect terminals (optional accessory) to connect to the top side of the relay.  The relay is molded with COM, NO markings into the plastic.


  • Transmitter Includes 2 Contact Closure Inputs
  • Receiver Includes 2-Channel High-Power Relays
  • Sold in Pairs with up to 1000′ Range 3-Wire Connection
  • Transmitter Communicate using 2-Way Communications
    • Transmitter Controls Remote Relays
    • Receiver Displays Status of Remote Relays
  • No Configuration, Computers, or Programming
  • Beacon Mode for Range Testing
  • Smart Mode for Fast, Protected Operation
  • Relay and Communication LED Status Lights
  • Auto Shut-Off when Communications is Lost
