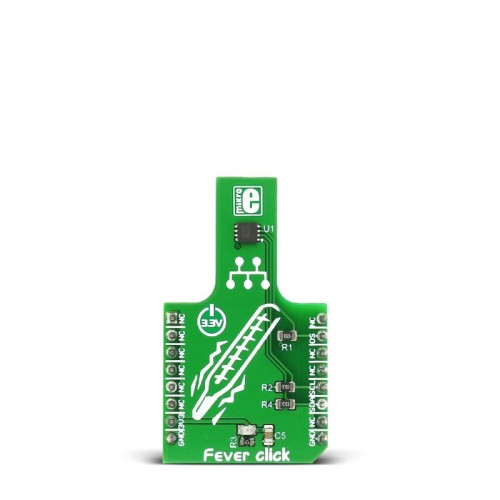

Fever click measures your body temperature with the accuracy of 0.1°C (37°C to 39°C). The click carries MAX30205 human body temperature sensor. Fever click is designed to work on a 3.3V power supply. It communicates with the target MCU over I2C interface.

MAX30205 sensor features

The MAX30205 temperature sensor accurately measures temperature and provide an overtemperature alarm/interrupt/shutdown output.

This device converts the temperature measurements to digital form using a high resolution, sigma-delta, analog-to-digital converter (ADC). An I2C-compatible two-wire serial interface allows access to conversion results.

The MAX30205 has 0.1°C accuracy (37°C to 39°C), and 16-Bit (0.00390625°C) temperature resolution.

How it works

Take a look at how Fever click reads the body temperature, and the results are shown on the mikromedia PIC32:

For this demo we measured the temperature from the palm of the hand, so the shown results are a couple of degrees lower than the average human body temperature.

Normal body temperature

The normal body temperature, of a healthy person, is 37°C. But this depends on various factors, like the age and sex of the person, the temperature of the room the person is in, the time of the day, etc.

A body temperature above 37.5°C up to 40°C is considered a fever.

Specifications

Type Temperature,Humidity
Applications Fitness and medical applications
MCU MAX30205 human body temperature sensor
Key Features 0.1°C Accuracy (37°C to 39°C), 16-Bit (0.00390625°C) temperature resolution
Interface I2C,GPIO
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Pinout diagram

This table shows how the pinout on Fever click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
  NC 1 AN PWM 16 NC
  NC 2 RST INT 15 OS Overtemperature Shutdown Output. Open-drain.
  NC 3 CS TX 14 NC
  NC 4 SCK RX 13 NC
  NC 5 MISO SCL 12 SCL Serial-Data Clock Input. Open-drain.
  NC 6 MOSI SDA 11 SDA Serial-Data Input/Output Line. Open-drain.
Power supply +3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Maximum ratings

Description Min Typ Max Unit
Supply Voltage -0.3   4 V
Input Current at Any Pin   5   mA
Continuous Power Dissipation   1951.2   mW
Operating Temperature Range 0   50 °C

Programming

Code examples for Fever click, written for MikroElektronika hardware and compilers are available on Libstock.

Fever click library communicates with the sensor, and converts the measured data into useful format. It also contains functions for the configuration of the click.

Code snippet

The following code snippet shows initialization of the system, writing a value into the register, and then reading that value.

01 void main()
02 {
03    system_init();
04    fever_init(0x48);
05    Delay_ms (100);
06    /*sets the temperature limit to specified value*/
07    fever_write_temperature (37.80, FEVER_TOS);
08    /*reads stored temperature limit, with 0.01 rounding error*/
09    fever_read_temperature_text (uart_text, FEVER_TOS);
10
11    UART_Write_Text("rn Current temperature limit for output signal: ");
12    UART_Write_Text(uart_text);
13    Delay_ms( 1000 );

Downloads

 mikroBUS™ Standard specification
 MAX30205 sensor datasheet
 Fever click schematic

 LibStock: Fever click library
