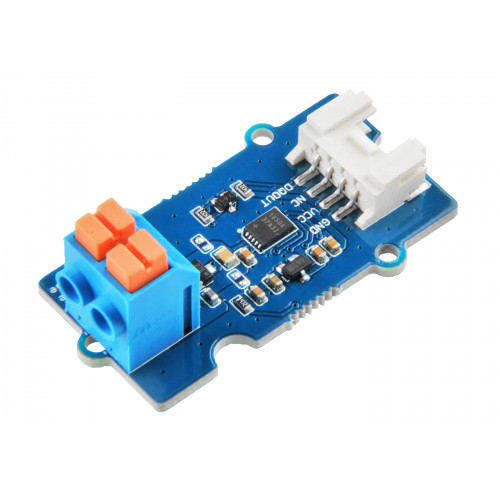

The Grove - 1-Wire Thermocouple Amplifier (MAX31850K) is a thermocouple-to-digital converters with 14-bit resolution and cold-junction compensation. This module is designed to be used in conjunction with a k-type thermocouple. The thermocouples have a much larger measurement range than thermistors. For example, this k-type thermocouple on our website has a measurement range of -50℃ to +600℃.
This module is based on the MAX31850K, which integrates amplifier, ADC and 64-bit ROM. Thanks to the 64-bit ROM, each device has a unique 64-bit serial code, which allows multiple units to function on the same 1-Wire bus. Therefore, it is simple to use one microcontroller (the master device) to monitor temperature from many thermocouples distributed over a large area.
Again, this module can't work alone, it must work with a k-type thermocouple.

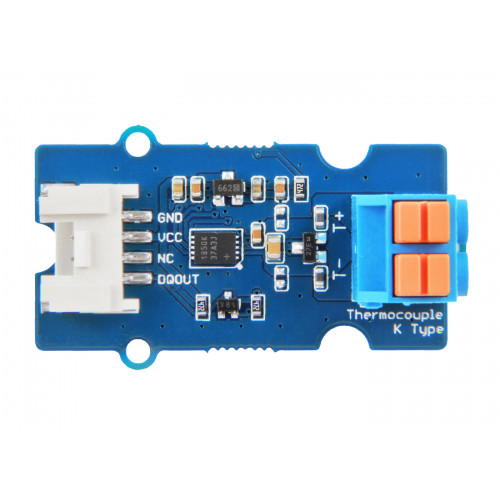

Usually the positive pole of the K-type thermocouple is red and the negative is light white, but we can't guarantee that all K-type thermocouples are like this. So the above diagram is only for the K-type thermocouple.

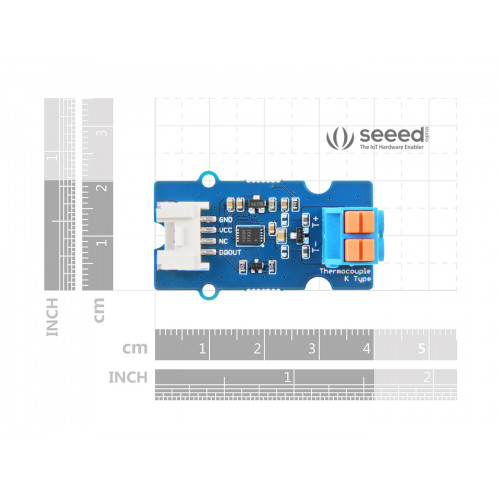

|Dimensions||40mm x 20mm x 18mm|
|Operating Voltage||3.3V / 5V|
|Temperature Resolution||14 bits|
|Temperature Accuracy||± 2℃|
|Operating Temperature Range||-40℃ to +125℃|
|Storage Temperature Range||-65℃ to +150℃|
|Allow Readings Range||-270℃ to +1768℃|
|Input Jack||DIP Female Blue-2Pin|
|Output Interface||1-Wire bus|
|Grove - 1-Wire Themocouple Amplifier (MAX31850K)||1|
