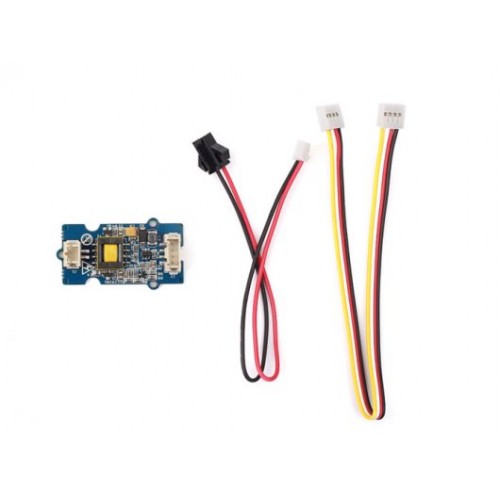

Grove - EL Driver

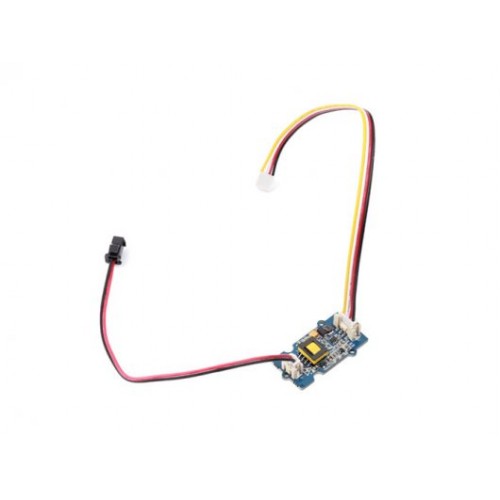

Grove - EL Driver is designed for driving EL Wires.It integrates a very small inverter to drive the EL Wire, so you can easily light up the EL Wire with just one single Grove cable.


Features:

• Grove compatible interface
• 3.3V/5V Compatible

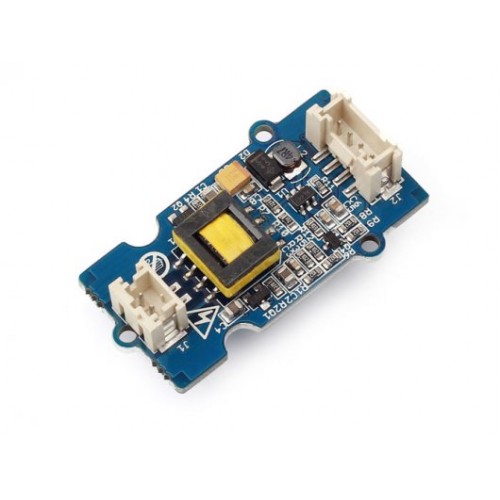

• Integrated Inverter Transformer

Specification:

• Input Current: 300mA Max (According to the load)
• Input Voltage 3~5Vdc
• Output Voltage:70~110Vpp
• Output frequency: 8~20kHz
• Supported max EL Capacitance: 15nF

Technical Details:

Part List:

Documents:

• sch_pcb_eagle
• sch_pdf
