HAPTIC click

Product Code: MIKROE-2025

Brand: MikroElektronika

0 reviews | Write a review

₹2,419.00

GST inclusive

Qty:

Availability: 1 In Stock

Add to Wish List

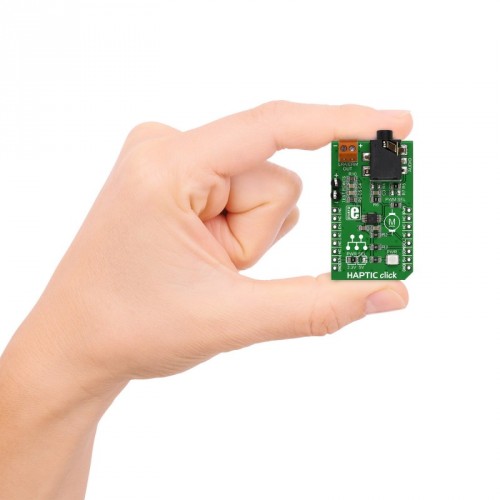

Haptic click carries DRV2605, a Haptic Driver for ERM and LRA vibration motors (acronyms stand for Eccentric Rotating Mass and Linear Resonant Actuator, respectively). The DRV2605 IC integrates an extensive library with over 100 haptic effects. These include audio-to-vibe features, which generate vibrations from the lower frequency range of the audio input (licensed version of ToushSense® 2200 effects from Immersion). The board also carries screw terminals for connecting said motors, as well as an audio interface (3.5mm jack). Haptic click communicates with the target MCU through mikroBUS I2C (SCL, SDA), EN (in place of CS) and PWM pins. The board is designed to use either a 3.3V or 5V power supply.

Specification

Type	DC
Applications	Enhancing User Interfaces with tactile feedback
On-board modules	DRV2605, a Haptic Driver for ERM and LRA vibration motors
Key Features	Audio jack for audio-to-vibe effects. Integrates library with over 100 haptic effects. Screw terminals for connecting ERM and LRA motors
Key Benefits	Several jumpers for hardware configuration. Includes licensed TouchSense® 2200 effects from Immersion™
Interface	I2C,PWM,GPIO
Input Voltage	3.3V or 5V
Compatibility	mikroBUS
Click board size	M (42.9 x 25.4 mm)
