I2C Shield for Particle Electron or Particle Photon with Outward Facing +5V I2C Port

Product Code: NCD PR19-5

I2C Shield for Particle Electron or Particle Photon with Outward Facing +5V I2C Port
I2C Shield for Particle Electron or Particle Photon with Outward Facing +5V I2C Port
I2C Shield for Particle Electron or Particle Photon with Outward Facing +5V I2C Port
I2C Shield for Particle Electron or Particle Photon with Outward Facing +5V I2C Port
Brand: NCD

Call Us
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

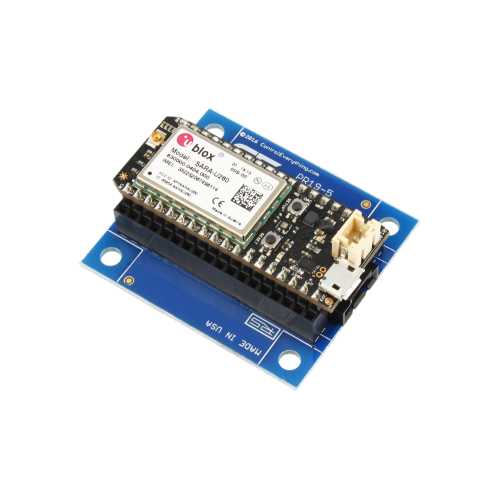

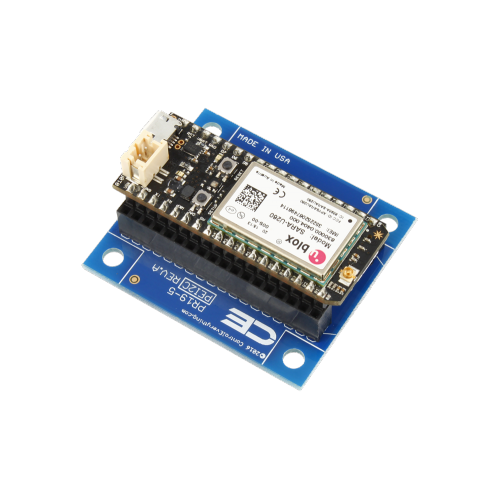

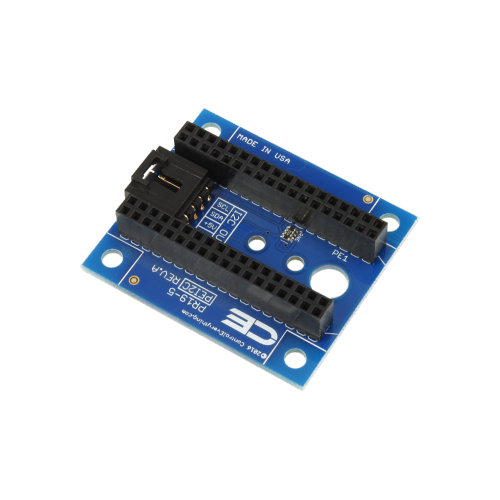

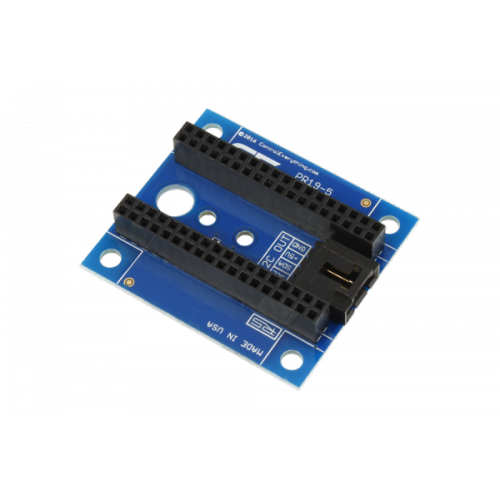

Use the Particle Electron / Photon to provide cloud connectivity to a world of expansion controllers using the PEI2C expansion.

The PEI2C provides a 5 Volt I2C expansion port, allowing your Particle Electron or Photon to connect to an ever-growing array of expansion devices from NCD.

Connect sensors for light level monitoring, gas level detection, temperature and humidity monitoring, as well as many types of motion, acceleration, and direction sensors.

Connect our entire array of relay controllers, digital I/O expanders, PWM controllers, and current monitoring devices to your next IoT application with a simple daisy-chain interface.

The PEI2C provides a +5V I2C communication port, making it one of the most important expansions available. The PEI2C allows you to expand into the world of hardware so you can focus on software. The PEI2C is compatible with our PKFR Key Fob overlay expansion, allowing Key Fob communications with the Particle Electron or Photon.

Features

  • Compatible with Particle Electron, Photon, and Bluz
  • Provides a Level-Shifted +5V I2C Port
  • Non-invasive Outward Pointing Connector
  • Compatible with Overlay Expansions for Particle and Bluz
  • Provides I2C Output Port for External Sensors and Controllers
  • Adds Limitless I2C Device Expansion Options
  • Cellular to I2C using Particle Electron
  • WiFi to I2C using Particle Photon
