ID01 UHF RFID Reader-USB

Product Code: DFR TEL0080

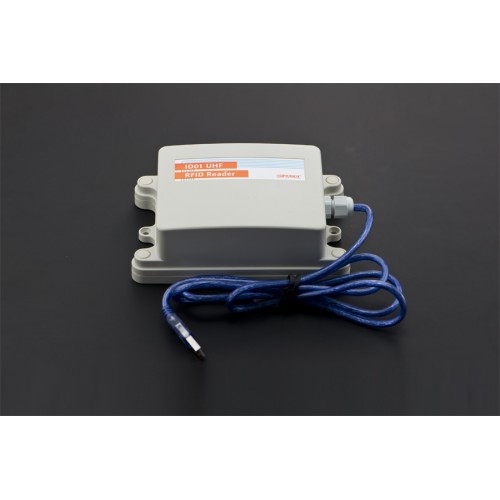

ID01 UHF RFID Reader-USB
Brand: DF Robot

₹15,199.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



This product has been discontinued by manufacturer.

INTRODUCTION

UHF RFID MODULE-USB,this RFID tag reader is a remote read-write module of IC card using non-contact UHF technology. It can be widely used in vehicle monitoring, remote control, home alarm system, wireless meter reading, access control system, industrial data acquisition system, the wireless tag, identification, non-contact RF card, small wireless data terminals, fire-proof systems, wireless remote control system, biological signal acquisition, hydrological and meteorological monitoring, robot control, etc.

SPECIFICATION

  • Interface:USB
  • Max Working current:200mA
  • Max Output Power: 24dBm
  • Effective Range : >30cm  (affect with antenna ,tag and environment)
  • Sensitivity:-102dBm , at least -98dBm
  • Support Baud Rate:9600、19200、38400、57600、115200(kbps)
  • Support Protocol:ISO18000-6C(EPC G2)
  • Response time:read: less than 10ms per 8 bytes,write: less than 20ms per byte
  • Environment temperature:-20℃~+65℃
  • Size:155mm*100mm

DOCUMENTS

SHIPPING LIST

  • UHF RFID MODULE-UART x1
  • RFID card x3
  • RFID Sticker x3
