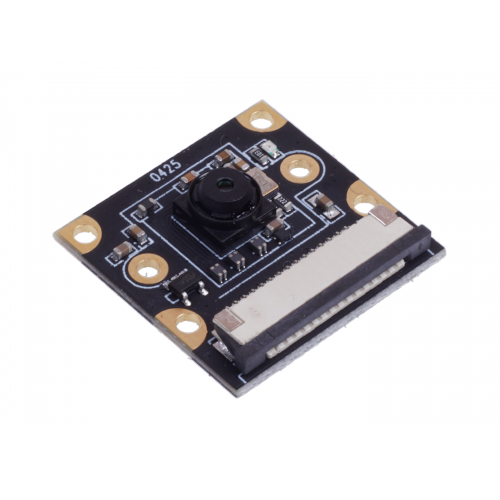

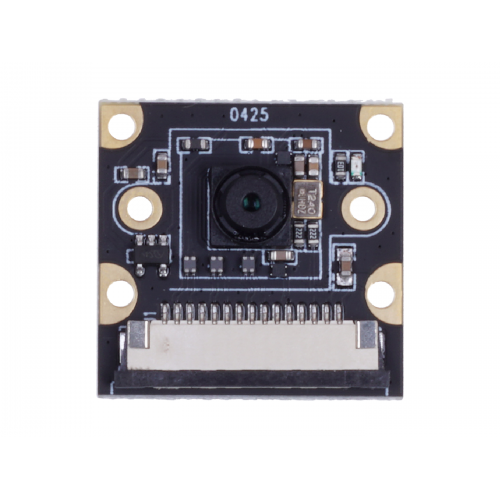

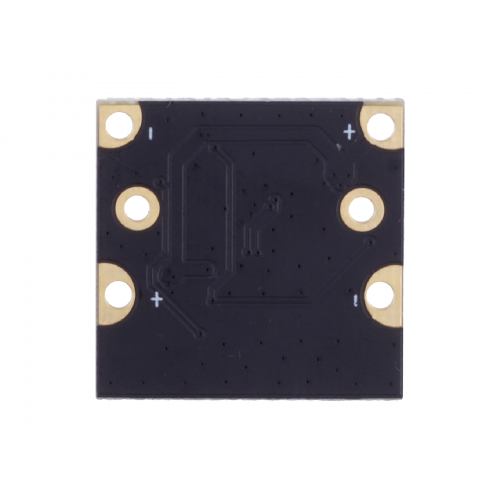

IMX219-77 Camera, 77° FOV, Applicable for Jetson Nano

Product Code: Waveshare 16507

IMX219-77 Camera, 77° FOV, Applicable for Jetson Nano
IMX219-77 Camera, 77° FOV, Applicable for Jetson Nano
IMX219-77 Camera, 77° FOV, Applicable for Jetson Nano
IMX219-77 Camera, 77° FOV, Applicable for Jetson Nano

₹1,879.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



IMX219-77 Camera Features

  • Supports NVIDIA Jetson Nano Developer Kit, Compute Module 3/3+
  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464
  • Lens specifications:
    • CMOS size: 1/4inch
    • Aperture (F): 2.0
    • Focal Length: 2.96mm
    • Angle of View (diagonal): 77 degree
    • Distortion: < 1%
    • Lens dimensions: 6.5mm × 6.5mm
  • 4 screw holes

    • Used for attachment
    • Provides 3.3V power output
  • Dimension: 25mm × 24mm

Applications

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

  • Face recognition
  • Road mark detection
  • License plate recognition

Package Content

Weight: 0.012 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. IMX219-77 Camera x1
  2. 15-pin FFC (opposite sides contact) x1

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-77_Camera
