Intelligent Rain Detection Module

Product Code: DFR SEN0545

Intelligent Rain Detection Module
Intelligent Rain Detection Module
Intelligent Rain Detection Module
Brand: DF Robot

₹2,529.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



INTRODUCTION :
This smart rain sensor offers a fast way to detect rainfall change on glass in real-time free from effects like sunlight, dust, leaves, etc., and feeds back information (no rain, light rain, moderate rain, or heavy rain) to users.

Intelligent Rain Detection Module
The module comes with a tiny body with a diameter of about 12.5mm, which adapts to cameras of all kinds. It can be used in security monitoring, smart home, smart agriculture, and so on. This small sensor can be easily embedded in projects even with strict space limits like box cameras and speed dome cameras.

Intelligent Rain Detection Module
The sensor can achieve accurate real-time rainfall detection in any rainfall environment, and its built-in optical algorithm can intelligently filter ambient factors like sunlight, dust, leaves, etc., to ensure precise rainfall data collection in complex conditions. It gives feedback about rainfall changes like light, moderate or heavy rain.

Intelligent Rain Detection ModuleBesides, it is equipped with functions like ambient light detection and temperature detection that can monitor internal device temperature. With the combination of rainfall, ambient and internal temperature, this sensor helps users build up smart, comprehensive, and cost-effective rainfall detection applications.
The sensor supports rainfall detection sensitivity adjustment for use in different rainfall and environments.

Intelligent Rain Detection Module

Also, it has low power mode that reduces power consumption, greatly extending module service life.

Intelligent Rain Detection Module
This module is mainly used to detect rainfall on the surface of windshield glass and send rainfall information (no rain, light rain, moderate rain, and heavy rain) to the camera host. Then camera host can control wipers to get rid of the raindrops on the windshield to ensure a clear view for the camera in rainy conditions. So, these smart rain detection modules are very suitable for smart doors or windows, smart windshield wipers, and so on.

Intelligent Rain Detection Module

Intelligent Rain Detection Module
FEATURES:
Can achieve accurate real-time rainfall detection in any rainfall environment
Equipped with functions like ambient light detection and temperature detection
Supports rainfall detection sensitivity

APPLICATIONS:
Security monitoring
Smart home
Smart agriculture

SPECIFICATION :
Communication: UART
Serial Communication Rate: 115200 bps
Voltage: 3.3V
Operating Current: <50mA
Temperature Range: -40℃~85℃
Dimension: diameter about 12.5±0.15mm

DOCUMENTS :
Datasheet
User Manual

SHIPPING LIST :

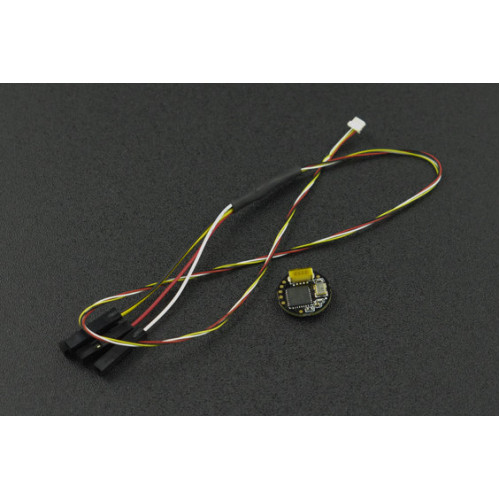

Intelligent Rain Detection Module x1
Adapter Cable x1
