Joystick click

Product Code: MIKROE-1506

Joystick click
Joystick click
Joystick click
Joystick click

₹2,309.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

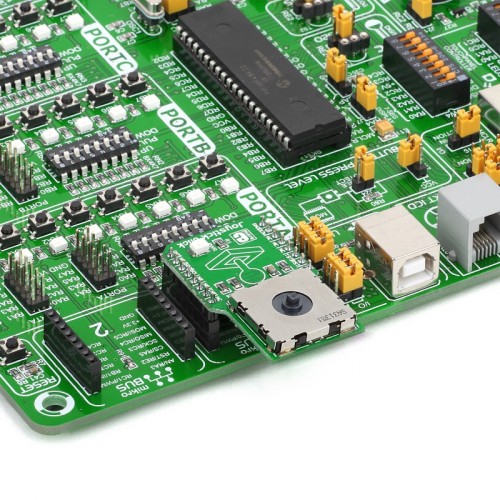

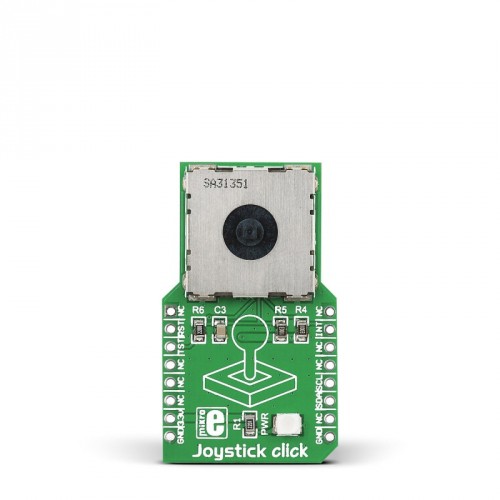

Joystick click is a smart navigation key concept based on contactless, magnetic movement detection. It features AS5013 Hall IC as well as N50P105 miniature magnetic joystick module. The AS5013 includes five integrated Hall sensing elements which are monitoring the movement of the magnet incorporated into the joystick, and directly provides the X and Y coordinates via I2C output. An integrated mechanical push button is also built into the joystick. Board uses 3.3V logic and power supply only.

Specification

Type Joystick
Applications Board ideal for small form-factor manual input devices in battery operated equipment, such as Mobile phones, MP3 players, GPS receivers and Gaming consoles
On-board modules AS5013 Hall IC with N50P105 miniature magnetic joystick module
Key Features Lateral magnet movement radius up to +/- 2.0mm
Key Benefits Simple to use I2C interface for reading X and Y coordinates

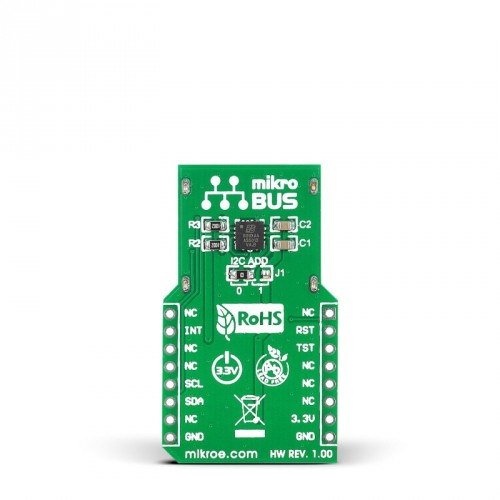

Interface GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS

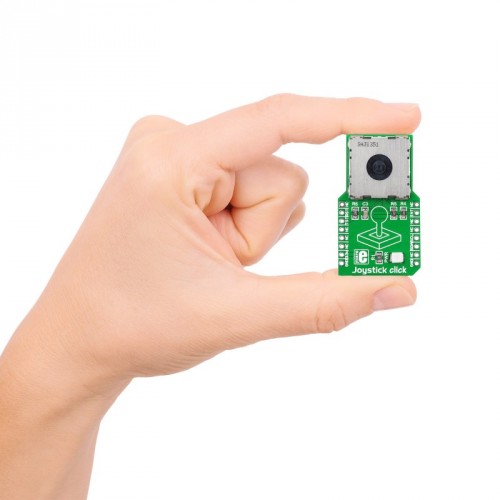

Click board size M (42.9 x 25.4 mm)

Downloads

 Joystick Click Examples

 Joystick Click User Manual
