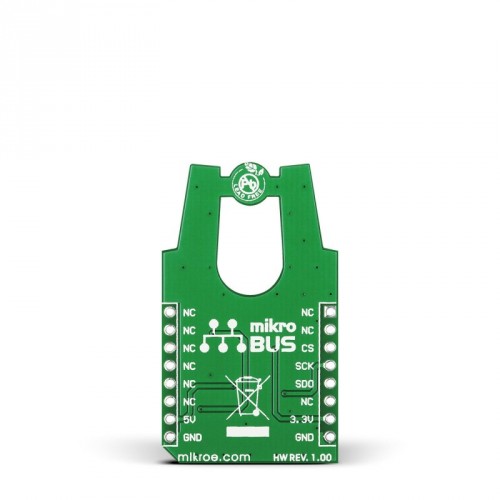

LIN HALL click carries an MLX90242 linear Hall sensor IC (with built-in active error correction circuitry) and an MCP3201 12-bit ADC. It outputs a signal that is proportional to the flux density of a magnetic field—a north magnetic field will increase the output value while a south magnetic field will cause it to decrease. The ratiometric output allows you to infer the linear or rotary position of a target object by placing magnets on it. LIN HALL click communicates with the target board through the mikroBUS SPI lines (CS, CSK, MISO). The board is designed to use either a 3.3V or a 5V power supply.
|Applications||Measuring strength of different magnets. Measuring distance of a magnet from sensor (suitable for industrial controllers, joysticks, or any other applications for contactless linear or rotary position sensing)|
|On-board modules||MLX90242 linear Hall sensor IC (with built-in active error correction circuitry) and an MCP3201 12-bit ADC|
|Key Features||Built-in active error correction circuitry. Linear output proportional to magnetic flux density|
|Key Benefits||Sensor resistant to dirt and other contaminants. Contactless sensing ensures system longevity|
|Input Voltage||3.3V or 5V|
|Click board size||M (42.9 x 25.4 mm)|
