Li-polymer Battery HAT, 5V Output, Quick Charge

Product Code: Waveshare 17076

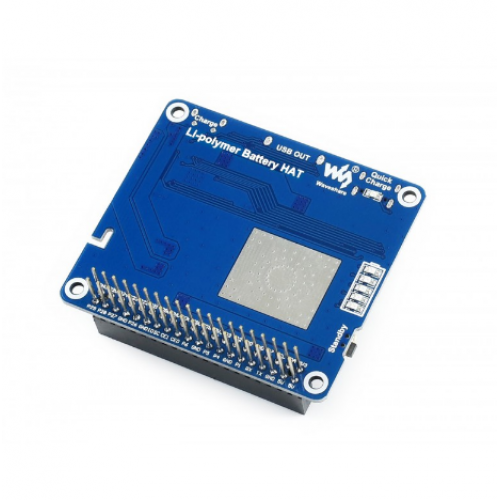

Li-polymer Battery HAT, 5V Output, Quick Charge
Li-polymer Battery HAT, 5V Output, Quick Charge
Li-polymer Battery HAT, 5V Output, Quick Charge
Li-polymer Battery HAT, 5V Output, Quick Charge

₹1,879.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Overview

The Li-polymer Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Raspberry Pi or other 5V devices, from a high capacity Li-polymer battery. It will charge the battery as well, supports bi-directional quick charge.

Compared with the Li-ion Battery HAT, this HAT utilizes Li-polymer battery with higher capacity, which means longer battery life, and allows higher loads. The size of the HAT is more fit for Raspberry Pi B/A+/B+/2B/3B/3B+/4B.

This is not a UPS, please note that the Raspberry Pi will restart when you connect it to the Pi. If you need a UPS, please check the UPS HAT.

Features

  • Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
  • Lithium battery protection circuitry, provides reverse protection, over charge protection, and short circuit protection
  • Onboard indicators: quick charge, power capacity
  • PH 2.0 battery connector, for connecting the 3.7V 3000mA high capacity Li-polymer battery (MSDS certified)

Specifications

  • Output voltage: 5V
  • Charge voltage: 5V
  • Applicable battery: 3.7V Li-polymer battery (4.2V when full charged)
  • Dimension: 65.0mm × 56.5mm
  • Mounting hole size: 3.0mm

What's on Board

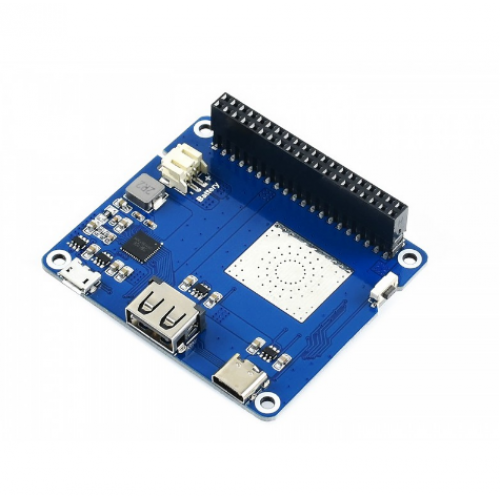

Li-polymer Battery HAT on board resource

  1. Raspberry Pi GPIO connector: for connecting Raspberry Pi
  2. PH 2.0 battery connector: for 3.7V Li-polymer battery
  3. USB Type-C connector: 5V battery charge/power output, supports quick charge
  4. USB Type-A connector: 5V power output
  5. Micro USB connector: 5V battery charge
  6. SW6106 power management chip
  7. Power output control switch
    Click: operating mode, provides 5V output
    Double click: standby mode, no output
  8. Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
  9. Quick charge indicator: on when quick charging
  10. Li-polymer battery: 3.7V 3000mAh, MSDS certified

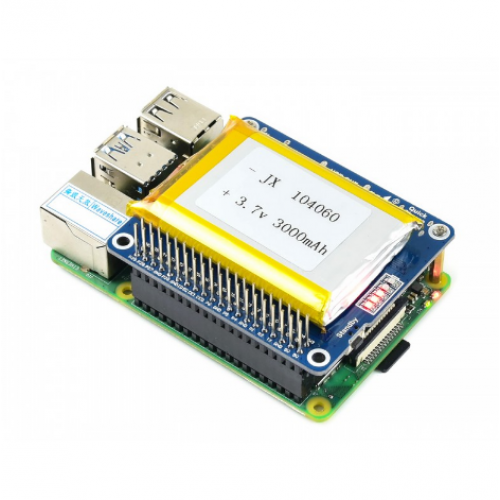

Example

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/Li-polymer_Battery_HAT

Package Content

Weight: 0.076 kg

Note: the Raspberry Pi is NOT included.

  1. Li-polymer Battery HAT x1
  2. 3.7V 3000mAh Li-polymer battery x1
  3. RPi screws pack (2pcs) x1
