NeoPixel RGBW LEDs w/ Integrated Driver Chip - Natural White - ~4500K - Black Casing - 10 Pack

Product Code: Adafruit 2761

NeoPixel RGBW LEDs w/ Integrated Driver Chip - Natural White - ~4500K - Black Casing - 10 Pack
NeoPixel RGBW LEDs w/ Integrated Driver Chip - Natural White - ~4500K - Black Casing - 10 Pack
NeoPixel RGBW LEDs w/ Integrated Driver Chip - Natural White - ~4500K - Black Casing - 10 Pack
Brand: Adafruit

₹649.00
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List



  • What is better than smart RGB LEDs? Smart RGB+White LEDs! These NeoPixels now have 4 LEDs in them (red, green, blue and white) for excellent lighting effects. Make your own smart RGBW LED arrangement with the same integrated LED driver that is used in our NeoPixel LED strips.

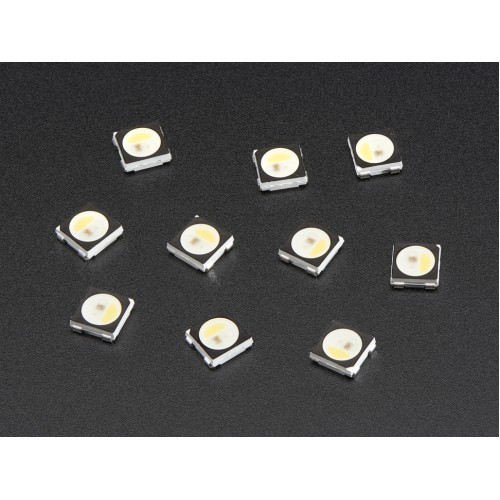

    This is the RGB + Natural White with a Black Casing version! Comes in a package with 10 individual LEDs, that you can solder yourself into any design you like.

    The NeoPixel is 'split', one half is the RGB you know and love, the other half is a white LED with a yellow phosphor. Unlit, it resembles a school bus. Lit up these are insanely bright (like ow my eye hurts) and can be controlled with 8-bit PWM per channel (8 x 4 channels = 32-bit color overall). Great for adding lots of colorful + warm white dots to your project!

    These tiny 5050 (5mm x 5mm) SMD LEDs are fairly easy to solder and they're the most compact way possible to integrate multiple bright LEDs to a design.

    NeoPixel LEDs use 800 KHz protocol so specific timing is required. On NeoPixels, the PWM rate is 400 Hz, which works well but is noticable if the LED is moving.

    NeoPixels are 5050-sized LEDs with an embedded microcontroller inside the LED. You can set the brightness of each R/G/B/W. Each LED acts like a shift register, reading incoming data on the input pins, and then shifting the previous data out on the output pin. By sending a long string of data, you can control an infinite number of LEDs, just tack on more or disconnect unwanted LEDs at the end. The PWM is built into each LED-chip so once you set the brightness you can stop talking to the strip and it will continue to PWM all the LEDs for you.

    We have a tutorial showing wiring, power usage calculations, example code for usage, etc. for NeoPixel Please check it out! Please note you will need a NeoPixel library with RGBW support which is not always available. If you try to control these with a plain 'RGB' NeoPixel library, you'll get very weird results. Our Adafruit NeoPixel library does support RGBW but if you're using something else, just be aware that it might require some hacking.



  • TECHNICAL DETAILS

    • Datasheet
    • Single LED: 5mm x 5mm / 0.2" x 0.2"
