Linear Potentiometer - KTC-300mm

Product Code: Phidgets 3582_0

Linear Potentiometer - KTC-300mm
Linear Potentiometer - KTC-300mm
Brand: Phidgets

₹13,189.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

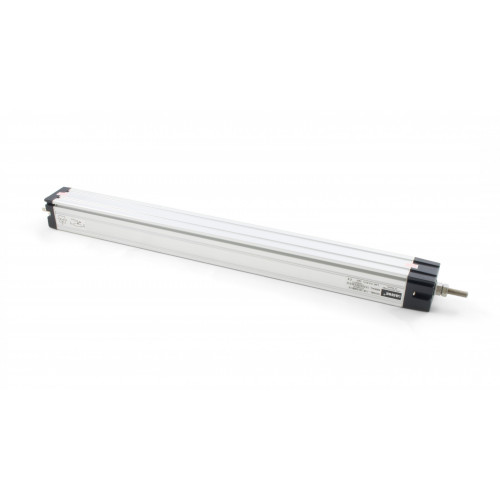

This industrial linear potentiometer has 300mm of travel and connects to an Analog Input or VINT Hub port.

The KTC series linear potentiometer is designed to provide position feedback for systems with moving parts. This potentiometer can extend to a length of 300mm and is protected by an anodized aluminium outer casing.

Connection

This sensor can be used with any device with an analog input. Simply cut and connect a 3-wire Phidget cable as described in the Phidget Cable section on the Connection & Compatibility tab.

Comes Packaged with

Accessories

  • 2 Mounting Brackets
  • A Wiring Harness with Cap
  • A Rubber Seal
  • A Ball Joint Attachment
  • 4 Mounting Screws

Product Specifications

Sensor Properties
Sensor Type Input (Linear)
Controlled By VoltageRatio Input
Linear Travel 300 mm
Potentiometer Impedance 5 kΩ
Repeatability Error Max 0.003 %
Physical Properties
Material Anodized Aluminium
IP Rating IP65
Lifespan 100 million actuations
Weight 423 g
