Manometer click

Product Code: MIKROE-2237

Manometer click
Manometer click
Manometer click
Manometer click

₹8,299.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

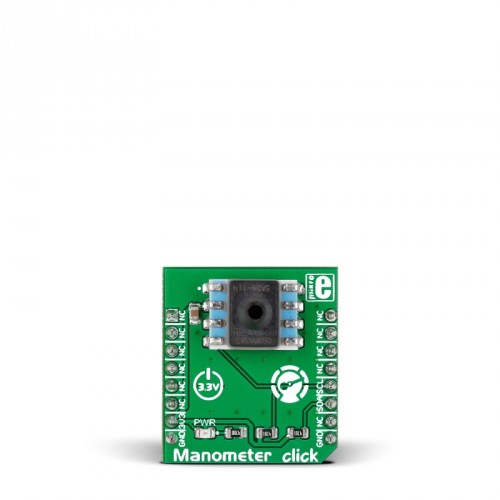

Manometer click carries a piezoresistive silicon pressure sensor, the HSCMAND060PA3A3 from Honeywell, an industry-leading module with an extremely high accuracy of ±0.25%FSS BFSL. The click is designed to run on a 3.3V power supply. It communicates with the target MCU over I2C interface.

HSCMAND060PA3A3 features

The HSCMAND060PA3A3 has an industry-leading, extremely high accuracy of ±0.25%FSS BFSL. An absolute pressure range from 0 to 60 PSI makes it suitable for a variety applications. Beyond the measurement range, the sensor has a high burst pressure threshold, resulting in increased reliability.

Features and usage notes

The sensor on Manometer click is a highly reliable and robust unit. It's also fairly easy to use and implement. It requires no calibration and it compensates for environmental conditions by relying on its internal temperature sensor.

The HSC Series is calibrated over the temperature range of 0 °C to 50 °C (32 °F to 122 °F).

The temperature sensor can also be accessed independently through the I2C interface.

The barbed port accepts 4.93 mm (0.19”) tubing which connects directly (no special extensions required).

Specifications

Type Pressure,Altitude
Applications A highly accurate pressure sensor suitable for demanding industrial applications (robotics, automotive, aircraft, HVAC, food production, engine controls, agriculture and more)
On-board modules Honeywell HSCMAND060PA3A3
Key Features Industry-leading extremely high accuracy of ±0.25 %FSS BFSL. Pressure range from 0 mbar to 60 PSI
Key Benefits High burst pressure threshold. Low power consumption
Interface I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)

Pinout diagram

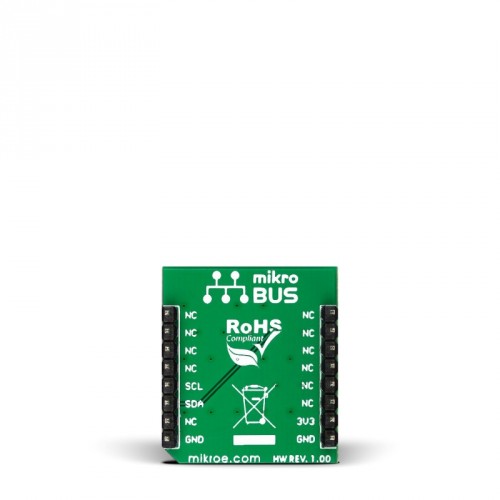

This table shows how the pinout on Manometer click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Mikrobus logo.png Pin Notes
  NC 1 AN PWM 16 NC
  NC 2 RST INT 15 NC
  NC 3 CS TX 14 NC
  NC 4 SCK RX 13 NC
  NC 5 MISO SCL 12 SCL I2C Clock
  NC 6 MOSI SDA 11 SDA I2C Data
Power supply +3.3V 7 3.3V 5V 10 NC
Ground GND 8 GND GND 9 GND Ground

Programming

Code examples for Manometer click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet shows how our library simplifies the usage of Manometer click.

 1 #include "manometer_hw.h"
 2 void main()
 3 {
 4     float pressure, temp;
 5     int count = 0;
 6     TWI_Init( 100000 );
 7     manometer_init( MANOMETER_ADDRESS_TYPE_3, 0, 60 );
 8     pressure = manometer_get_pressure();
 9     temp = manometer_get_temp( CELSIUS );
10     if( pressure > 45 && temp > 35 )
11         count++;
12 }

Downloads

 mikroBUS™ Standard specification
 Libstock: Manometer click library
 Manometer click Schematic
 Learn Article - Industrial Solution pressures

 HSCMAND060PA3A3 datasheet
