NFC Module for Arduino

INTRODUCTION

Near Field Communications (NFC) is a set of short-range wireless technologies, typically requiring a distance of 10cm or less, for two devices such as smartphones or the similar things very close to each other to establish communication. Communication is also possible between a NFC device and unpowered NFC chips such as tags, stickers, key fobs and cards which do not require batteries.

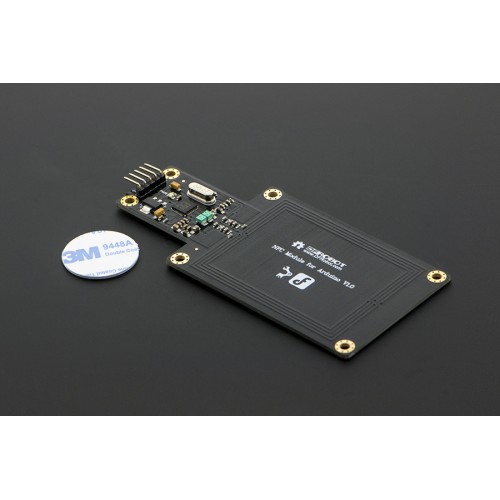

The NFC Module for Arduino is designed to extend this powerful feature for your project or application based on Arduino. It integrates a PN532 NFC controller from Philips. The driver interface for this product is UART interface of the microcontroller. So it's possible for you to test it via a USB to UART converter directly. On the other hand, for the applications with microcontroller, the module provides an event for your processor when detects the NFC tags, stickers, key fobs, or cards via high speed serial uart

APPLICATIONS

• Contactless payment systems
• Bluetooth and Wi-Fi connections
• Social networking situations, such as sharing contacts, photos, videos or files
• Electronic identity documents and keycards
• Smartphone automation and NFC tags

SPECIFICATION

• Working Voltage: 3.3v or 5v
• Host interface: UART
• Integrate PN532 NFC controller
• Supports ISO 14443A/MIFARE
• Supports ISO 14443B in reader/writer mode only
• Typical max operating distance for detecting NFC tags from 20 to 50mm depending on the antenna *size of the tag
• Serve for contactless communication at 13.56MHz
