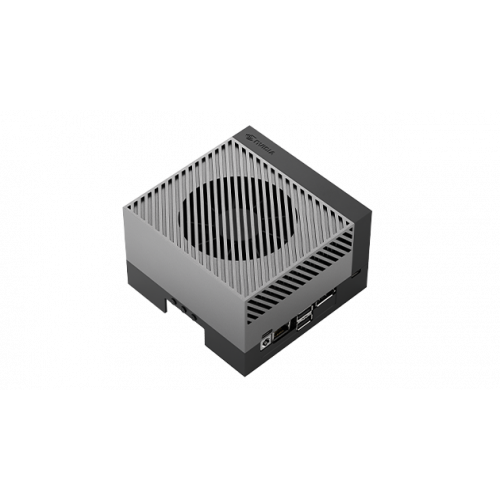

NVIDIA Jetson AGX Orin Developer Kit

Product Code: Jetson-AGX-Orin

NVIDIA Jetson AGX Orin Developer Kit
Brand: Nvidia

GST inclusive


Availability: 1 In Stock

Add to Wish List

Get started developing with the NVIDIA® Jetson AGX Orin™ Developer Kit. It includes a high-performance, power-efficient Jetson AGX Orin module, and can emulate the other Jetson Orin modules. With up to 275 TOPS for running the NVIDIA AI software stack, this developer kit lets you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.

8x AI performance: a giant leap forward for Edge AI compare to Jetson AGX Xavier
The newest member of Jetson Family, NVIDIA® Jetson AGX Orin™ Developer Kit, provides a giant leap forward for Robotics and Edge AI. With up to 275 TOPS of AI performance and power configurable between 15W and 50W, you now have more than 6X the performance of NVIDIA® Jetson AGX Xavier™ in the same compact form-factor for developing advanced robots and other autonomous machine products.

NVIDIA® Jetson AGX Orin developer kit contains a Jetson AGX Orin module with heat sink and reference carrier board, 802.11ac/abgn wireless Network Interface Controller, USB-C power adapter, and cord together with a quick start and support guide. Jetson AGX Orin features an NVIDIA Ampere architecture GPU and Arm Cortex - A78AE CPU, together with next-generation deep learning and vision accelerators. High-speed IO, 204GB/s of memory bandwidth, and 32GB of DRAM are capable of feeding multiple concurrent AI application pipelines. With Jetson AGX Orin, developers can now deploy large and complex models to solve problems like natural language understanding, 3D perception, and multi-sensor fusion.


  1. A Giant Leap Forward for Robotics and Edge AI: up to 275 TOPS and 8X the performance of NVIDIA® Jetson AGX Xavier™ in the same compact form-factor, power configurable between 15W and 50W
  2. New NVIDIA Ampere GPU and Carmel CPU: 2048 NVIDIA CUDA® cores and 64 Tensor Cores, 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
  3. Enable multiple concurrent AI applications: on-board 64GB eMMC, 204 GB/s of memory bandwidth, and 32 GB of DRAM
  4. Plenty of high speed I/O: 22 lanes of PCIe Gen4, Gigabit Ethernet, 4 XFI interfaces for 10 Gigabit Ethernet, a Display Port, 16 lanes of MIPI CSI-2, USB3.2 interfaces and 40-pin header.
  5. Include next-generation vision accelerator engine: PVA v2, and multi-standard video encoder & decoder
  6. Newest Jetpack 5.0 installs Ubuntu 20.04 and support entire NVIDIA JetPack™ and use-case specific software platforms including Isaac for robotics, and Metropolis for smart cities.


Jetson AGX Orin module



AI Performance


275 TOPS (INT8)




NVIDIA Ampere architecture

with 2048 NVIDIA® CUDA® cores and 64 Tensor Cores


Max GPU Freq


1 GHz




12-core Arm® Cortex®-A78AE v8.2 64-bit CPU

3MB L2 + 6MB L3


CPU Max Freq


2 GHz


DL Accelerator


2x NVDLA v2.0


Vision Accelerator


PVA v2.0




32GB 256-bit LPDDR5

204.8 GB/s




64GB eMMC 5.1


CSI Camera


Up to 6 cameras (16 via virtual channels*)

16 lanes MIPI CSI-2

D-PHY 1.2 (up to 40Gbps) | C-PHY 1.1 (up to 164Gbps)


Video Encode


2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)


Video Decode


1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60| 24x 1080p30 (H.265)




2 x8 (or 1×8 + 2×4), 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint)

3x USB 3.2

Single lane UFS




1x GbE

4x 10GbE




1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1


Other I/O


4x USB 2.0

4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs




15W | 30W | 50W




100mm x 87mm

699-pin Molex Mirror Mezz Connector

Integrated Thermal Transfer Plate


Jetson AGX Orin Reference Carrier Board





16 lane MIPI CSI-2 connector




x16 PCIe slot supporting x8 PCIe Gen4




Up to 10 GbE


M.2 Key M


x4 PCIe Gen 4


USB Type-C


2x USB 3.2 Gen2 with USB-PD support


USB Type-A


4x USB 3.2 Gen2


USB Micro-B


USB 2.0




DisplayPort 1.4a (+MST)


microSD slot


UHS-1 cards up to SDR104 mode




40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)

12-pin automation header10-pin audio panel header

10-pin JTAG header

4-pin fan header

2-pin RTC battery backup connector

DC power jack


Force Recovery, and Reset buttons




110mm x 110mm x 71.65mm

(Height includes feet, carrier board, module, and thermal solution)

Part List

Jetson AGX Orin Developer Kit x1
