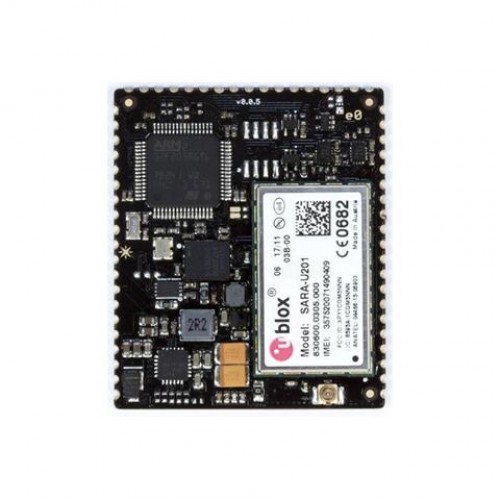

E Series 3G Module (Global)

The E Series is Particle’s newest product family of industrialized cellular IoT modules.

E Series Product Features

Particle’s E Series is a new family of production-grade 2G, 3G, and LTE-enabled hardware that vastly reduces the cost and complexity of deploying cellular-connected IoT solutions at scale.

All E Series modules include the following features:

      - Embedded SIM card, which resists vibration, corrosion, and mechanical failure
      - Surface-mountable design, for PCB assembly in mass-production
      - Industrial temperature range from -20 to 85C for deployment in hostile environments
      - Future-compatible pinout with support for 2G and 3G today and a seamless transition to LTE M1 and NB1 in 2018
      - Fully certified design virtually eliminating the cost and complexity of RF and carrier compliance
      - Built-in compatibility with Particle's development tools, messaging platform, and device management console

The E310 module supports worldwide 2G and 3G connectivity and can be configured into a 2G only mode.

All Particle Hardware is designed from the ground up to work with the Device Cloud. The Device Cloud is a powerful set of tools and infrastructure to build, connect, and manage your IoT fleet.

• Access to the Device Cloud includes:

• 3MB of cellular data per device/mo (additional data $0.40/MB for most countries)
• First 3 months of Device Cloud FREE ($2.99 per device/mo after)
• Device Cloud Features:

  - Device Management

  - Over the Air Firmware Updates

  - Fully Managed Connectivity

  - Developer Tools

  - Integrations

• Specs:

• STM32F205 ARM Cortex M3 microcontroller
• 1MB Flash, 128K RAM
• Cellular modem: u-blox SARA U-series (3G Global with 2G fallback)
• 36 pins total: 28 GPIOs (D0-D13, A0-A13), plus TX/RX, 2 GNDs, VIN, VBAT, WKP, 3V3, RST
• Board dimensions: 36mm x 43mm

Continent compatibility is simplified and exceptions exist. Please be sure to check the full list of compatible countries for the location in which your product will be deployed.
